1030A-0101000
Multipair Cable, Tray, Shielded, 1 Pair, 16 AWG, 1000 ft, 305 m
| Quantity | Price |
|---|---|
| 1+ | $2,057.360 |
| 5+ | $1,899.090 |
| 10+ | $1,765.180 |
Product Information
Product Overview

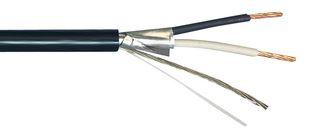

The 1030A-0101000 is a 1-pair 1000ft Shielded Cable with 16AWG twisted pair stranded bare copper conductors and PVC insulation. This 300V multi-conductor power-limited tray cable comes with a Beldfoil® aluminum foil-polyester tape shield (100% coverage) and black PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- 177.928N Maximum recommended pulling tension
- 0.62339µH/m Nominal inductance
- 200.141pF/m Nominal capacitance conductor to conductor
- 12.1397Ω/km at 20°C Nominal conductor DC resistance (DCR)
- -30 to 105°C Operating temperature range
Applications
Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
Technical Specifications
Shielded
16AWG
1000ft
Black
300V
Copper
-
1 Pair
-
305m
7 x 24AWG
PVC
6.528mm
No SVHC (10-Jun-2022)
