1624R 0061000

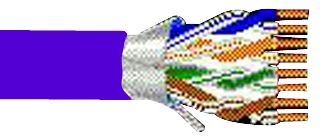

Networking Cable, DataTwist, Shielded, Cat5, 24 AWG, 1000 ft, 304.8 m
| Quantity | Price |
|---|---|
| 1+ | $1,328.660 |
| 5+ | $1,277.280 |
| 10+ | $1,233.230 |
Product Information
Product Overview
The 1624R 0061000 is a 4-pair 1000ft Shielded Cable with 24AWG solid bare copper conductors and polyolefin insulation. This CAT5 (100MHz) riser-CMR non-bonded pair premise horizontal ScTP multi-conductor cable comes with a Beldfoil® aluminum foil-polyester tape shield and blue PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- 25lbs Maximum recommended pulling tension
- 15pF/m Nominal mutual capacitance
- 67% Nominal velocity of propagation
- 9.38Ω/km at 20°C Nominal conductor DC resistance (DCR)
- -20 to 75°C Operating temperature range
Applications
Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
Technical Specifications
Shielded
24AWG
1000ft
4 Pair
Solid
PVC
6.604mm
No SVHC (10-Jun-2022)
Cat5
-
304.8m
Blue
300V
Copper
-
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
RoHS
RoHS
Product Compliance Certificate
