9504 060100

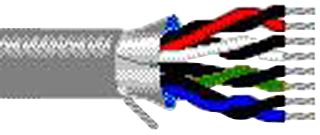

Multipair Cable, Computer, Shielded, 4 Pair, 24 AWG, 100 ft, 30.48 m
1 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | $556.250 |
| 5+ | $534.740 |
| 10+ | $516.310 |
Product Information
Product Overview
The 9504 060100 is a 100ft 4-pair shielded Computer Cable with 24AWG stranded (7 x 32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® aluminum foil-polyester tape shield (100% coverage) and chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. This computer cable is designed for EIA RS-232 applications.
- 30pF/ft Conductor to conductor nominal capacitance
- 50pF/ft Conductor to other conductor and shield nominal capacitance
- 24Ω/1000ft at 20°C Nominal conductor DC resistance
- 17Ω/1000ft at 20°C Nominal outer shield DC resistance
- UL1685 FT4 Loading flame tested
Applications
Computers & Computer Peripherals
Technical Specifications
Shielded
24AWG
100ft
Chrome
300V
Tinned Copper
-
4 Pair
-
30.48m
7 x 32AWG
PVC
6.731mm
No SVHC (10-Jun-2022)
