9842 060100

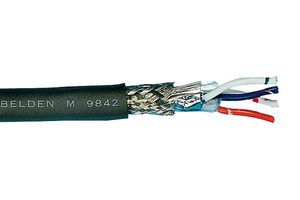

The 9842 060100 is a 2-pair Shielded Cable with 24AWG stranded tinned copper conductors and polyethylene insulation. This 82842 plenum twisted pair low capacitance multi-conductor cable comes with a 24AWG stranded tinned copper drain wire, chrome PVC jacket, Beldfoil® aluminium foil-polyester tape shield (100% coverage) and tinned copper braid shield (90% coverage). This computer cable is suitable for EIA RS-485 applications. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.

• 386.993N Maximum recommended pulling tension
• 41.9968pF/m Nominal capacitance conductor to conductor
• 66% Nominal velocity of propagation
• 78.744Ω/km at 20°C Nominal conductor DC resistance (DCR)
• -30 to 80°C Operating temperature range

Applications

Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
