Our range of wireless charging coils includes one coil, two coil and three coil devices, with inductance from 2.5µH to 47µH.

Wireless charging coils are electronic components at the core of wireless charging technology; an approach which allows battery-operated mobile and portable devices to be recharged without need for cables or plugging in.

Broadly, there are three types of wireless charging. There are charging pads that use tightly coupled electromagnetic inductive or non-radiative charging; charging bowls or through-surface type chargers that use loosely coupled or radiative electromagnetic resonant charging that can transmit a charge a few centimetres; and uncoupled radio frequency (RF) wireless charging that allows a trickle charging capability at distances of many feet.

Both tightly coupled inductive and loosely coupled resonant charging operate on the same principle of physics: a time-varying magnetic field induces a current in a closed loop of wire.

Qi wireless charging coils are important because they comply with the Qi charging standard. This is not the only wireless charging method available, but it's the first one that is supported by two of the largest and most-influential smartphone makers: Samsung and Apple.

Applications of wireless charging coils

Wireless charging is currently being used in many applications including:

Smartphones and wearable technology
Notebooks and tablets
Power tools and service robots, such as vacuum cleaners
Multicopters and electric toys
Medical devices
In-car charging

Compare Selected Compare (0)

Sort by

Best Match

Best Match Price: Low to High Price: High to Low Stock: Low to High Stock: High to Low

Manufacturer Part No	Newark Part No.	Description / Manufacturer	Price for:	Price	Quantity	Product Range	Inductance	Inductance Tolerance	DC Resistance Max	No. of Coils	No. of Layers	Saturation Current (Isat)	Self Resonant Frequency	Quality Factor	AC Current Rating	Longitud del Producto	Ancho del Producto	Altura del Producto	Inductor Mounting	Operating Temperature Min	Operating Temperature Max
						Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending

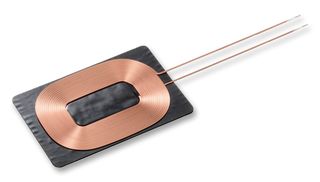

WR303050-15F5-G	28X9841 Data Sheet + RoHS	CHARGING COIL, 12.3UH TDK You previously purchased this product. View in Order History	Each	1+ $6.54 10+ $4.05 25+ $3.94 50+ $3.82 100+ $3.70 500+ $3.58 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WR	12.3µH	-	0.41ohm	1 Coil	1 Layer	-	-	-	-	30mm	30.4mm	0.92mm	Board Mount	-30°C	70°C

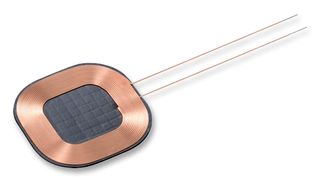

WR483265-15F5-G	28X9849 Data Sheet + RoHS	CHARGING COIL, 13.3UH TDK You previously purchased this product. View in Order History	Each	1+ $7.40 10+ $4.74 25+ $4.67 50+ $4.58 100+ $4.51 500+ $4.44 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WR	13.3µH	-	0.2ohm	1 Coil	1 Layer	-	-	-	-	32.5mm	48.5mm	1.25mm	Board Mount	-30°C	70°C

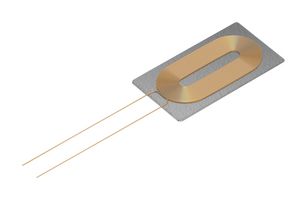

WR221230-36M8-G	42AC1208 Data Sheet + RoHS	CHARGING COIL, 27.9UH, 5%, 22 X 12MM, RX TDK You previously purchased this product. View in Order History	Each	1+ $3.07 10+ $2.15 25+ $1.98 50+ $1.81 100+ $1.65	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WR	27.9µH	± 5%	1.21ohm	1 Coil	2 Layers	-	-	-	-	22mm	12mm	0.87mm	Board Mount	-30°C	70°C
146179-8021	70AC8168 Data Sheet + RoHS	WIRELESS CHARGING COIL, 4UH, 2%, RX MOLEX You previously purchased this product. View in Order History	Each	1+ $18.58 5+ $18.23 10+ $17.91 25+ $17.46 50+ $17.13 100+ $16.80 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	PowerLife 146179	4µH	± 2%	0.235ohm	1 Coil	1 Layer	-	-	115@6.78MHz	-	-	-	0.685mm	Board Mount	-	-

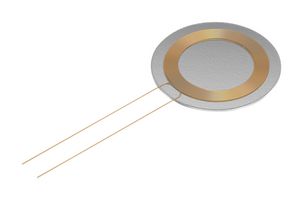

WR222230-26M8-G	42AC1209 Data Sheet + RoHS	CHARGING COIL, 27UH, 22MM DIA, RX TDK You previously purchased this product. View in Order History	Each	1+ $4.08 10+ $2.71 25+ $2.65 50+ $2.59 100+ $2.52 500+ $2.37 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WR	27µH	-	1.1ohm	1 Coil	2 Layers	-	-	-	-	-	-	0.87mm	Board Mount	-30°C	70°C

IWAS4832ABEB110JF1	83AH7792 Data Sheet + RoHS Date/Lot Code	Charging Coil, IWAS Series, 11 µH, ± 5%, 0.187 ohm, 1 Coil, 1 Layer VISHAY You previously purchased this product. View in Order History	Each	1+ $9.32 10+ $8.49 25+ $7.62 50+ $6.89 100+ $6.14 500+ $5.41 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	IWAS Series	11µH	± 5%	0.187ohm	1 Coil	1 Layer	-	-	60@200kHz	-	32mm	48mm	1.7mm	Board Mount	-40°C	105°C

IWTX50R0DZEB6R3KF1	52AH6133 Data Sheet + RoHS	CHARGING COIL, 6.3UH, 10% ROHS COMPLIANT: YES VISHAY You previously purchased this product. View in Order History	Each	1+ $5.37 10+ $5.16 25+ $4.93 50+ $4.38 100+ $3.85 500+ $3.32 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	IWTX Series	6.3µH	± 10%	0.025ohm	1 Coil	2 Layers	-	-	90@100kHz	-	-	-	4mm	Board Mount	-40°C	85°C

SWC4242KB120-100	59Y7857 Data Sheet + RoHS	WIRELESS CHARGING COIL, 12.5UH, 10% ROHS COMPLIANT: YES LAIRD You previously purchased this product. View in Order History	Each	1+ $7.33 10+ $7.07 25+ $6.66 50+ $6.43 100+ $6.16 250+ $6.03 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	SWC	12.5µH	± 10%	0.24ohm	1 Coil	1 Layer	-	-	20@100kHz	-	42mm	42mm	0.7mm	Board Mount	-40°C	85°C

AWCCA-RX350300-101	12AC7582 Data Sheet + RoHS Date/Lot Code	CHARGING COIL, 25UH, 10%, 3.15X35MM DIA ABRACON You previously purchased this product. View in Order History	Each	1+ $5.91 10+ $4.93 25+ $4.57 50+ $4.21 100+ $3.85 500+ $3.61 1000+ $3.41 2500+ $3.27 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	AWCCA	25µH	± 10%	0.17ohm	1 Coil	2 Layers	-	-	85@100kHz	-	-	-	3mm	Board Mount	-25°C	85°C

WT303012-12F2-ID	42AC1218 Data Sheet + RoHS Date/Lot Code	CHARGING COIL, 6.3UH, 5%, 30MM DIA, TX TDK You previously purchased this product. View in Order History	Each	1+ $5.61 10+ $4.55 25+ $4.31 50+ $4.10 100+ $3.87 500+ $3.75 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WT	6.3µH	± 5%	0.115ohm	1 Coil	2 Layers	-	-	-	-	-	-	2.15mm	Board Mount	-30°C	70°C

WR524830-16F3-NF-G	42AC1214 Data Sheet + RoHS Date/Lot Code	CHARGING COIL, 19.5UH, NFC ANTENNA RX TDK You previously purchased this product. View in Order History	Each	1+ $11.78 10+ $10.91 25+ $9.13 50+ $8.99 100+ $8.83 250+ $8.55 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WR-NFC	19.5µH	-	0.8ohm	1 Coil	1 Layer	-	-	-	-	52.5mm	48.5mm	0.62mm	Board Mount	-30°C	70°C

760308101220	38AJ2723 Data Sheet + RoHS	POWER CHARGE RECEIVER COIL, 12.6UH, 10% ROHS COMPLIANT: YES WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $12.41 10+ $11.81 25+ $10.95 50+ $9.94	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WE-WPCC	12.6µH	± 10%	0.34ohm	1 Coil	3 Layers	-	19MHz	20@125kHz	-	-	-	0.82mm	Board Mount	-20°C	105°C

WR524825-17M6-NF-G	42AC1213 Data Sheet + RoHS Date/Lot Code	CHARGING COIL, 16.8UH, NFC ANTENNA RX TDK You previously purchased this product. View in Order History	Each	1+ $11.34 10+ $10.49 25+ $8.78 50+ $8.53 100+ $8.28 250+ $7.99 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WR-NFC	16.8µH	-	0.75ohm	1 Coil	1 Layer	-	-	-	-	52.5mm	48.5mm	0.52mm	Board Mount	-30°C	70°C

WR301025-19M8-G	42AC1210 Data Sheet + RoHS Date/Lot Code	CHARGING COIL, 12.8UH, 30MM X 10MM, RX TDK You previously purchased this product. View in Order History	Each	1+ $3.38 10+ $2.04 25+ $1.96 50+ $1.88 100+ $1.79	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WR	12.8µH	-	1.27ohm	1 Coil	2 Layers	-	-	-	-	10mm	30mm	0.52mm	Board Mount	-30°C	70°C

IWAS3010AZEB130KF1	41AH2955 Data Sheet + RoHS Date/Lot Code	CHARGING COIL, 13UH, 10% ROHS COMPLIANT: YES VISHAY You previously purchased this product. View in Order History	Each	1+ $4.64 10+ $3.02 25+ $2.97 50+ $2.91 100+ $2.84 500+ $2.78 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	IWAS Series	13µH	± 10%	0.78ohm	1 Coil	1 Layer	-	-	11@100kHz	-	10mm	30mm	1mm	Board Mount	-40°C	85°C

760308101303	59Y8325 Data Sheet + RoHS	Charging Coil, Wireless, WE-WPCC Series, 47 µH, ± 10%, 0.5 ohm, 1 Coil, 3 Layers WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $18.15 10+ $17.71 25+ $17.29 50+ $16.85 100+ $14.26 250+ $12.31 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WE-WPCC Series	47µH	± 10%	0.5ohm	1 Coil	3 Layers	-	8MHz	25@125kHz	-	-	-	1.31mm	Board Mount	-20°C	105°C

760308103204	55X2265 Data Sheet Data Sheet + RoHS Date/Lot Code	Charging Coil, Wireless, WE-WPCC Series, 16.7 µH, ± 10%, 0.43 ohm, 1 Coil, 1 Layer WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $10.19 10+ $9.28 25+ $8.28 50+ $7.27 100+ $6.64	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WE-WPCC Series	16.7µH	± 10%	0.43ohm	1 Coil	1 Layer	-	11MHz	32@125kHz	-	30.5mm	38.5mm	0.85mm	Board Mount	-20°C	105°C

760308105309	82AC4636 Data Sheet + RoHS	CHARGING COIL, 10UH, 10% ROHS COMPLIANT: YES WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $14.79 10+ $10.77 25+ $10.42 50+ $10.08 100+ $9.51	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WE-WPCC	10µH	± 10%	0.45ohm	1 Coil	1 Layer	-	18.5MHz	19@125kHz	-	-	-	0.49mm	Board Mount	-20°C	105°C

WT202012-15F2-ID	42AC1217 Data Sheet + RoHS	CHARGING COIL, 6.2UH, 5%, 20.3MM DIA, TX TDK You previously purchased this product. View in Order History	Each	1+ $5.93 10+ $3.67 25+ $3.65 50+ $3.65 100+ $3.65 500+ $3.32 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WT	6.2µH	± 5%	0.095ohm	1 Coil	2 Layers	-	-	-	-	-	-	2.84mm	Board Mount	-30°C	70°C

760308101104	82AC4623 Data Sheet + RoHS	CHARGING COIL, 6.8UH, 10% ROHS COMPLIANT: YES WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $20.02 10+ $18.69 25+ $17.95 50+ $17.19 100+ $15.82 250+ $14.56 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WE-WPCC	6.8µH	± 10%	0.125ohm	1 Coil	1 Layer	-	20MHz	42@125kHz	-	-	-	2.8mm	Board Mount	-20°C	105°C

WT151512-22F2-ID	42AC1216 Data Sheet + RoHS	CHARGING COIL, 6.8UH, 5%, 15.3MM DIA, TX TDK You previously purchased this product. View in Order History	Each	1+ $5.60 10+ $3.68 25+ $3.57 50+ $3.47 100+ $3.37 500+ $3.25 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WT	6.8µH	± 5%	0.18ohm	1 Coil	2 Layers	-	-	-	-	-	-	2.42mm	Board Mount	-30°C	70°C

IWAS4832AEEB120KF1	41AH2957 Data Sheet + RoHS	CHARGING COIL, 12UH, 10% ROHS COMPLIANT: YES VISHAY You previously purchased this product. View in Order History	Each	1+ $4.23 10+ $2.67 25+ $2.61 50+ $2.52 100+ $2.47 500+ $2.39 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	IWAS Series	12µH	± 10%	0.2ohm	1 Coil	1 Layer	-	-	33@100kHz	-	32mm	48mm	1.5mm	Board Mount	-40°C	85°C

760308103205	59Y8330 Data Sheet + RoHS	Charging Coil, Wireless, WE-WPCC Series, 11 µH, ± 10%, 0.2 ohm, 1 Coil, 1 Layer WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $12.70 10+ $12.47 25+ $12.25 50+ $12.01 100+ $10.16	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WE-WPCC Series	11µH	± 10%	0.2ohm	1 Coil	1 Layer	-	16MHz	30@125kHz	-	26.5mm	34mm	0.89mm	Board Mount	-20°C	105°C

WR483245-15F5-G	28X9848 Data Sheet + RoHS	CHARGING COIL, 13UH TDK You previously purchased this product. View in Order History	Each	1+ $7.12 10+ $4.57 25+ $4.47 50+ $4.37 100+ $4.28 500+ $4.18 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WR	13µH	-	0.2ohm	1 Coil	1 Layer	-	-	-	-	32.5mm	48.5mm	1mm	Board Mount	-30°C	70°C

760308101219	38AJ2722 Data Sheet + RoHS	POWER CHARGE RECEIVER COIL, 11.8UH, 10% ROHS COMPLIANT: YES WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $11.80 10+ $11.17 25+ $10.31 50+ $9.42 100+ $8.05	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add	WE-WPCC	11.8µH	± 10%	0.75ohm	1 Coil	1 Layer	-	22MHz	13@125kHz	-	-	-	0.6mm	Board Mount	-20°C	105°C
