80ET
Fuse, Semiconductor, 80 A, Fast Acting, 17.1mm x 48mm, 0.67" x 1.89", 690 VDC

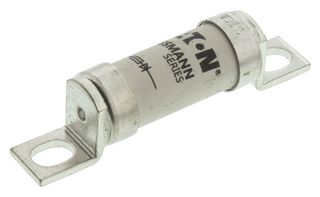

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEATON BUSSMANN
Manufacturer Part No80ET
Newark Part No.99K0772
Product RangeBS 88
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 19 week(s)
| Quantity | Price |
|---|---|
| 1+ | $249.870 |
| 5+ | $165.820 |
| 10+ | $117.510 |
| 25+ | $88.660 |
| 50+ | $72.450 |
| 100+ | $61.320 |
Price for:Each
Minimum: 1
Multiple: 1
$249.87
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEATON BUSSMANN
Manufacturer Part No80ET
Newark Part No.99K0772
Product RangeBS 88
Technical Datasheet
Product RangeBS 88
Fuse Current80A
Blow CharacteristicVery Fast Acting
Fuse Size Metric17.1mm x 77mm
Fuse Size Imperial0.67" x 3.03"
Voltage Rating VDC500VDC
Voltage Rating VAC690VAC
SVHCNo SVHC (10-Jun-2022)
Product Overview
The 80ET from Bussmann is a british BS 88 style stud mount high speed fuse.
- Rated current is 80A
- Interrupting rating of 200KA
- Rated AC voltage of 690V
- Rated DC voltage of 500V
- UL, CE, BS 88 part 4 and IEC 269 part 4 approved
- Excellent cycling capability
- Excellent DC performance
- Low arc voltage and low energy let through (I2t)
- Low power loss
Applications
Safety
Technical Specifications
Product Range
BS 88
Blow Characteristic
Very Fast Acting
Fuse Size Imperial
0.67" x 3.03"
Voltage Rating VAC
690VAC
Fuse Current
80A
Fuse Size Metric
17.1mm x 77mm
Voltage Rating VDC
500VDC
SVHC
No SVHC (10-Jun-2022)
