B57-050-220-202
I/O Connector, 50 Contacts, Receptacle, Centronics, Press Fit, B57 Series, PCB Mount

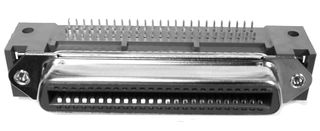

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEDAC
Manufacturer Part NoB57-050-220-202
Newark Part No.59K0121
Product RangeB57 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Product Information
ManufacturerEDAC
Manufacturer Part NoB57-050-220-202
Newark Part No.59K0121
Product RangeB57 Series
Technical Datasheet
No. of Contacts50Contacts
Connector TypeCentronics
Contact Termination TypePress Fit
Product RangeB57 Series
Connector MountingPCB Mount
Contact PlatingGold Plated Contacts
Contact MaterialPhosphor Bronze
Product Overview
The B57 series Centronics Wire to board Connector for use with 0.062, 0.093 or 0.125-inch board thickness. It has nickel-plated steel shell with gold-plated copper alloy contacts and a blue glass-filled thermoplastic Insulator.
- Available in 50 and 64 positions
- Intermateable with comparable series connectors
- Mounting Posts Provide Positive Location and Retention
- UL94V-0 Flammability rating
- 5A AC/DC Continuous current rating
- 30mΩ Maximum contact resistance
- 1000MΩ Minimum insulation resistance at 500VDC
- -40 to 105°C Operating temperature range
Applications
Industrial, Communications & Networking, Automation & Process Control
Technical Specifications
No. of Contacts
50Contacts
Connector Type
Centronics
Product Range
B57 Series
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (23-Jan-2024)
Gender
Receptacle
Contact Termination Type
Press Fit
Connector Mounting
PCB Mount
Contact Material
Phosphor Bronze
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
