2773021447

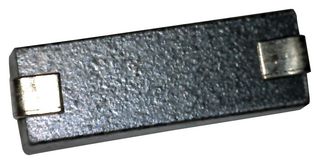

Ferrite Bead, 78 ohm, 5 A, 0.0012 ohm
11,200 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | $0.467 |
| 25+ | $0.312 |
| 50+ | $0.274 |
| 100+ | $0.246 |
| 250+ | $0.216 |
| 500+ | $0.196 |
| 1000+ | $0.180 |
Product Information
Product Overview
The 2773021447 is a SM Bead with 73-grade material, differential-mode. The copper conductors have a lead-free tin coating. Rugged construction lowers the DC resistance and increases current carrying capacity compared to plated beads. Wires are oxygen-free high conductivity copper with 100% matte tin plating over a nickel undercoating. SM bead meets the solderability specifications when tested in accordance with MIL-STD-202, method 208. After dipping the mounting site of the bead, the solder surface shall be at least 95% covered with a smooth solder coating. The edges of the copper strip are not specified as solderable surfaces.
- Supports lower frequencies (<lt/>50MHz)
- -55 to 125°C Operating temperature
Applications
Industrial
Technical Specifications
-
5A
0.0012ohm
9.6mm
2.85mm
-55°C
-
78ohm
-
-
3.05mm
SMD
125°C
No SVHC (21-Jan-2025)
