000-36800-RFX

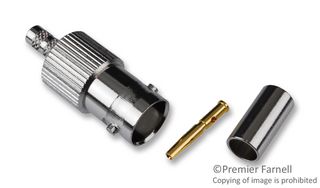

RF / Coaxial Connector, BNC Coaxial, Straight Jack, Crimp, 50 ohm
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 5,450 $ |
| 10+ | 5,020 $ |
| 25+ | 4,810 $ |
| 50+ | 4,620 $ |
| 100+ | 4,420 $ |
| 250+ | 4,150 $ |
| 500+ | 4,020 $ |
| 1000+ | 3,850 $ |
Informations produit
Aperçu du produit
The 36800-RFX is a RF Connector, BNC series, BNC straight Crimp Jack with gold-plated phosphor bronze contacts and crimp contact termination. Body made up of brass with nickel-plated finish and Delrin insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature and lightweight units, typically yield low reflection through 4GHz. Designed to accommodate a large variety of RG and industry standard cables. This RF connector is designed for Belden 9907, Belden B7806A, LMR-195, RG-141, RG-303, RG-58 and RG-58A cable.
- Standard polarity
- 5000MΩ Minimum insulation resistance
- 500 Mating cycles
- -65 to 165°C Temperature range
Applications
RF Communications, Communications & Networking, Automotive, Computers & Computer Peripherals, Medical, Sensing & Instrumentation
Spécifications techniques
BNC Coaxial
Crimp
RG58, RG141, LMR195, LMR200, Belden 7806A, 8219, 8240, 8259, 8262, 9201, 9203, 9310, 9311
Gold Plated Contacts
Cable Mount
Lead
Straight Jack
50ohm
Phosphor Bronze
4GHz
-
Documents techniques (1)
