MPX5700GP1
Pressure Sensor, Gauge, 0 kPa, 700 kPa, 4.75 V, 5.25 V, SIP

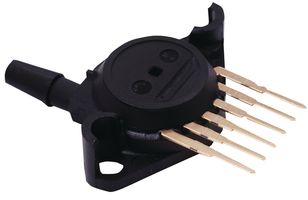

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 10 semaine(s)
| Quantité | Prix |
|---|---|
| 10+ | 27,100 $ |
Prix pour :Each
Minimum: 100
Multiple: 100
2 710,00 $
Ajouter Référence Interne / Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Ce numéro sera ajouté à la confirmation de commande, à la facture, au bon d’expédition, au courriel de confirmation Web et à l’étiquette.
Informations produit
FabricantNXP
Réf. FabricantMPX5700GP1
Code Commande09J5497
Pressure TypeGauge
Operating Pressure Min0kPa
Sensitivity, V/P6.4mV/kPa
Operating Pressure Max700kPa
Supply Voltage Min4.75V
Supply Voltage Max5.25V
Sensor Case / PackageSIP
Sensor Case StyleSIP
No. of Pins6Pins
Operating Temperature Min-40°C
Operating Temperature Max125°C
Product Range-
Qualification-
MSL-
SVHCNo SVHC (17-Jan-2023)
Aperçu du produit
MPX5700GP1 is an integrated silicon pressure sensor on-chip signal conditioned, temperature compensated and calibrated. It is a piezoresistive transducer. It is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. This patented, single element transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure.
- 2.5% maximum error over 0°C to 85°C
- Ideally suited for microprocessor or microcontroller-based systems
- Patented silicon shear stress strain gauge
- Durable epoxy unibody element
- Supply voltage range from 4.75V to 5.25VDC (VS = 5.0VDC, TA = 25°C)
- Accuracy is ±2.5%VFSS maximum (VS = 5.0VDC, TA = 25°C)
- Sensitivity is 6.4mV/kPa typical (VS = 5.0VDC, TA = 25°C)
- Response time is 1.0ms typical (VS = 5.0VDC, TA = 25°C)
- Output source current at full scale output is 0.1mAdc typical (VS = 5.0VDC, TA = 25°C)
- Operating temperature range from -40°C to +125°C
Spécifications techniques
Pressure Type
Gauge
Sensitivity, V/P
6.4mV/kPa
Supply Voltage Min
4.75V
Sensor Case / Package
SIP
No. of Pins
6Pins
Operating Temperature Max
125°C
Qualification
-
SVHC
No SVHC (17-Jan-2023)
Operating Pressure Min
0kPa
Operating Pressure Max
700kPa
Supply Voltage Max
5.25V
Sensor Case Style
SIP
Operating Temperature Min
-40°C
Product Range
-
MSL
-
Produits associés
5 produit(s) trouvé(s)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (17-Jan-2023)
