72-8115

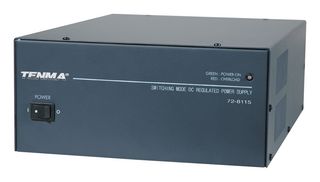

Bench Power Supply, Single, Fixed, 1 Output, 13.8 V, 25 A
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 32 semaine(s)
Informations produit
FabricantTENMA
Réf. Fabricant72-8115
Code Commande80R7523
Power Supply Output TypeFixed
No. of Outputs1 Output
Output Voltage Min-
Output Voltage Max13.8V
Output Current Min-
Output Current Max25A
Power Rating345W
Supply Voltage Min-
Supply Voltage Max110V
Manufacturer Warranty-
Product Range-
Plug Type-
SVHCNo SVHC (15-Jan-2018)
Aperçu du produit
72-8115 from Tenma is a 25A current switch mode power supply. This efficient switch mode power supply features a very compact foot print and light weight design. It is perfect for telecommunications equipment, two-way radio, RF amplifiers and other high current applications including autosound and multimedia.
- High RFI stability
- Over voltage protection at 16.5V (OVP) and variable speed fan cooling method
- Current fold-back over load protection with LED indicator
- Fixed voltage is 13.8VDC and rated output current is 25A
- Ripple and noise is 50mVp-p, load regulation is 200mV and line regulation is 50mV
- Input voltage is 110VAC, 60Hz
- Efficiency is <gt/>78% and dynamic power factor correction is <gt/>0.95
- Bi-color (green/red) LED indicator
- Dimensions (H X W X D) is 4.33" x 8.67" x 8.67" and weight of 7.7lbs
- 24 month limited warranty *view Terms & Conditions for details
Spécifications techniques
Power Supply Output Type
Fixed
Output Voltage Min
-
Output Current Min
-
Power Rating
345W
Supply Voltage Max
110V
Product Range
-
SVHC
No SVHC (15-Jan-2018)
No. of Outputs
1 Output
Output Voltage Max
13.8V
Output Current Max
25A
Supply Voltage Min
-
Manufacturer Warranty
-
Plug Type
-
Documents techniques (1)
Produits associés
7 produit(s) trouvé(s)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (15-Jan-2018)
