09110006131

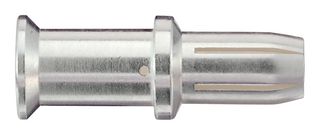

Heavy Duty Connector Contact, TC70 Series, Pin, Crimp, 70 A, Copper Alloy
Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARTING
Manufacturer Part No09110006131
Newark Part No.58T8014
Product RangeTC70 Series
Technical Datasheet
10 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $18.500 |
| 10+ | $15.310 |
| 25+ | $14.080 |
| 50+ | $12.850 |
| 100+ | $11.940 |
| 250+ | $10.870 |
Price for:Each
Minimum: 1
Multiple: 1
$18.50
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHARTING
Manufacturer Part No09110006131
Newark Part No.58T8014
Product RangeTC70 Series
Technical Datasheet
Product RangeTC70 Series
Contact GenderPin
Wire Size AWG Max-
Contact Termination TypeCrimp
Current Rating70A
Contact MaterialCopper Alloy
Contact PlatingSilver Plated Contacts
SVHCNo SVHC (08-Jul-2021)
Product Overview
The 09110006131 from Harting is a Han TC70 male crimp contact for Han-Modular® connectors. This crimp contact specifications are according to IEC 61984 and EN 60664-1 standards.
- Conductor cross-section is 10mm²
- Operating current is less than or equal to 70A
- Contact resistance is less than or equal to 0.5mohm
- Stripping length is 15.5mm
- Material (contacts) is copper alloy, surface (contacts) is silver plated
- Net weight is 8.93g
Applications
Industrial
Technical Specifications
Product Range
TC70 Series
Wire Size AWG Max
-
Current Rating
70A
Contact Plating
Silver Plated Contacts
Contact Gender
Pin
Contact Termination Type
Crimp
Contact Material
Copper Alloy
SVHC
No SVHC (08-Jul-2021)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
