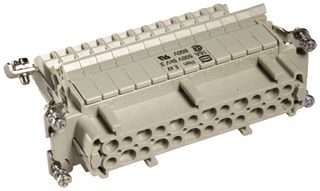

Heavy Duty Connector, 24+PE Signal, Terminal Block Connection, Han E AV Series, Insert, 25 Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARTING
Manufacturer Part No09330244725
Newark Part No.04C9335
Product RangeHan E AV Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 20 week(s)
| Quantity | Price |
|---|---|
| 1+ | $242.730 |
| 5+ | $231.610 |
| 10+ | $220.520 |
| 25+ | $205.360 |
Price for:Each
Minimum: 1
Multiple: 1
$242.73
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHARTING
Manufacturer Part No09330244725
Newark Part No.04C9335
Product RangeHan E AV Series
Technical Datasheet
Product RangeHan E AV Series
Heavy Duty Connector TypeInsert
No. of Contacts25Contacts
No. of Contacts25 Contacts
Rectangular Shell Size24B
Heavy Duty Contact TypeScrew Socket
Wire Size AWG Max14AWG
Current Rating16A
Wire Size AWG Min24AWG
Contact MaterialCopper Alloy
Contact PlatingSilver Plated Contacts
SVHCNo SVHC (08-Jul-2021)
Product Overview
The 9330244725 is a Han E AV series 0.2 to 2.5mm² 24-position Heavy Duty Connector Insert with silver plated contacts and screw terminal.
- ≤4mΩ Contact resistance
- UL94V-0 Flammability
Applications
Industrial
Technical Specifications
Product Range
Han E AV Series
No. of Contacts
25Contacts
Rectangular Shell Size
24B
Heavy Duty Contact Type
Screw Socket
Current Rating
16A
Contact Material
Copper Alloy
SVHC
No SVHC (08-Jul-2021)
Heavy Duty Connector Type
Insert
No. of Contacts
25 Contacts
Gender
Receptacle
Wire Size AWG Max
14AWG
Wire Size AWG Min
24AWG
Contact Plating
Silver Plated Contacts
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
