10200030001

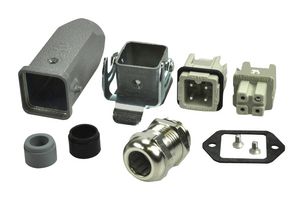

Connector Kit, Wire To Wire, Han 3A Hood & Housing, M20 Cable Gland & 3Pos+PE Inserts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARTING
Manufacturer Part No10200030001
Newark Part No.37AC2009
Product RangeHan-Kit Series
Your Part Number
Technical Datasheet
60 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $82.530 |
| 5+ | $77.870 |
| 10+ | $73.220 |
| 25+ | $68.660 |
| 50+ | $65.380 |
Price for:Each
Minimum: 1
Multiple: 1
$82.53
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerHARTING
Manufacturer Part No10200030001
Newark Part No.37AC2009
Product RangeHan-Kit Series
Technical Datasheet
Connector Kit TypeWire To Wire
Product RangeHan-Kit Series
SVHCNo SVHC (08-Jul-2021)
Product Overview
10200030001 is a Han-Kit®-3AGM connector kit.
- Han® 3 A straight hood and bulkhead-mounted housing
- Die cast zinc alloy material
- IP67 protection degree
- M20, metal cable gland
- 600V rated voltage accd. to UL/CSA
- 5 - 9mm / 6 - 12mm cable diameter
- Han® 3 A, 3-pins + PE insert
- 1-2.5mm², AWG 18-14 screw terminal
- 10A rated current, 230/400V rated voltage (conductor-ground)
- 4kV rated impulse voltage
Technical Specifications
Connector Kit Type
Wire To Wire
Product Range
Han-Kit Series
Kit Contents
Han 3A Hood & Housing, M20 Cable Gland & 3Pos+PE Inserts
SVHC
No SVHC (08-Jul-2021)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
