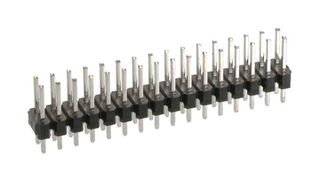

Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 4 Contacts, Through Hole Straight, M20
1,300 In Stock
12,000 more incoming. You can reserve stock now
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.310 |
| 25+ | $0.263 |
| 50+ | $0.246 |
| 100+ | $0.228 |
| 500+ | $0.206 |
| 1000+ | $0.196 |
| 5000+ | $0.179 |
| 10000+ | $0.172 |
Price for:Each
Minimum: 1
Multiple: 1
$0.31
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerHARWIN
Manufacturer Part NoM20-9980245Copy
Manufacturer Standard Lead Time16 weeks
Newark Part No.29AH6814
Product RangeM20
Connector SystemsBoard-to-Board
Pitch Spacing2.54mm
No. of Rows2Rows
No. of Contacts4Contacts
Contact Termination TypeThrough Hole
Product RangeM20
Connector ShroudUnshrouded
Contact MaterialBrass
Contact PlatingGold Plated Contacts
Connector TypePin Header
SVHCNo SVHC (04-Feb-2026)
Product Overview
M20-9980245 is a M20 series 2+2 position male DIL vertical throughboard connector.
- 2.54mm (0.1") pitch PCB connector
- Double row 3mm PC tail, 6.1mm mating pin length - 4 contacts (2+2)
- Gold finish on contact area and termination
- Can be cut to a smaller number of contacts using the M20 hand cutting tool Z1022-00
- 0.64mm square mating pin size
- Vertical connector orientation
- Operating temperature range from -40°C to +105°C
- 3A max per contact current rating
- Polyamide (nylon) 6T housing, brass base material of contact
- 2.54mm (0.1") contact pitch, 3mm PC tail length
