IM12B20EC1XKMA1
Intelligent Power Module (IPM), IGBT, 1.2 kV, 30 A, 2.5 kV, DIP, CIPOS

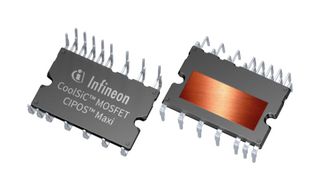

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | IM12B20EC1XKMA1Copy |
| Manufacturer Standard Lead Time | 29 weeks |
| Newark Part No. | 13AM4773 |
| Product Range | CIPOS Maxi Series |
| Your Part Number |
192 In Stock
Need more?
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $38.490 |
| 5+ | $35.750 |
| 10+ | $33.000 |
| 25+ | $30.260 |
| 50+ | $28.940 |
| 100+ | $27.950 |
| 250+ | $26.950 |
Price for:Each
Minimum: 1
Multiple: 1
$38.49
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | IM12B20EC1XKMA1Copy |
| Manufacturer Standard Lead Time | 29 weeks |
| Newark Part No. | 13AM4773 |
| Product Range | CIPOS Maxi Series |
| IPM Power Device | IGBT |
| Voltage Rating (Vces / Vdss) | 1.2kV |
| Current Rating (Ic / Id) | 30A |
| Isolation Voltage | 2.5kV |
| IPM Case Style | DIP |
| IPM Series | CIPOS |
| Product Range | CIPOS Maxi Series |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
IM12B20EC1XKMA1 is a CIPOS™ maxi 1200V, 20A three-phase intelligent power module. CIPOS™ Maxi 1200V, 20A three-phase IGBT7 based intelligent power module with open emitter in DIP 36x23D package providing fully-featured compact inverter solution with excellent thermal conduction for motor drive applications including industrial drives, fans and pumps, HVAC, active filters, and etc. Suitable for general purpose motor drive - variating frequency and voltage, heating ventilation and air conditioning (HVAC), industrial automation and motor control applications.
- Based on 1200V TRENCHSTOP™ IGBT7
- Power rating up to 4000W at 10KHz
- Rugged 1200V SOI gate driver
- Over current shutdown
- Under-voltage lockout
- All 6 switches turn off during protection
- Temperature monitoring
- Cross-conduction prevention
- UL-certified and excellent thermal performance
- Low switching losses, fit for space-constrained applications, compact footprint
Technical Specifications
| IPM Power Device | IGBT |
|---|---|
| Current Rating (Ic / Id) | 30A |
| IPM Case Style | DIP |
| Product Range | CIPOS Maxi Series |
| Voltage Rating (Vces / Vdss) | 1.2kV |
|---|---|
| Isolation Voltage | 2.5kV |
| IPM Series | CIPOS |
| SVHC | No SVHC (25-Jun-2025) |
