TRS3-0MCR01
THERMAL REED SW, 10DEG C, MAKE, 0.5A ROHS COMPLIANT: YES

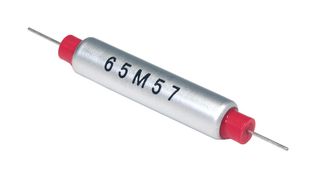

Image is for illustrative purposes only. Please refer to product description.
34 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $18.910 |
| 10+ | $15.120 |
| 25+ | $14.370 |
| 50+ | $13.370 |
| 100+ | $12.370 |
| 250+ | $11.980 |
| 500+ | $11.610 |
Price for:Each
Minimum: 1
Multiple: 1
$18.91
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerKEMET
Manufacturer Part NoTRS3-0MCR01
Newark Part No.74AK3126
Product RangeTRS Series
Switching Temperature0°C
Switching Temperature Tolerance± 2.5°C
Thermal Reed Switch Contact TypeMake
Thermal Reed Switch TerminalsWire Leads
Product RangeTRS Series
Contact Resistance Max0.15ohm
Maximum Opening / Closing Power35W AC / 10W DC
Maximum Opening / Closing Voltage140 VAC / 200 VDC
Minimum Opening / Closing Current1mA
Maximum Opening / Closing Current500mA
Maximum Differential Temperature10°C
Approvals-
SVHCNo SVHC (14-Jun-2023)
Technical Specifications
Switching Temperature
0°C
Thermal Reed Switch Contact Type
Make
Product Range
TRS Series
Maximum Opening / Closing Power
35W AC / 10W DC
Minimum Opening / Closing Current
1mA
Maximum Differential Temperature
10°C
SVHC
No SVHC (14-Jun-2023)
Switching Temperature Tolerance
± 2.5°C
Thermal Reed Switch Terminals
Wire Leads
Contact Resistance Max
0.15ohm
Maximum Opening / Closing Voltage
140 VAC / 200 VDC
Maximum Opening / Closing Current
500mA
Approvals
-
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (14-Jun-2023)
