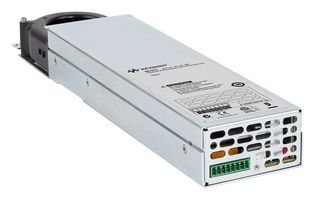

KEYSIGHT TECHNOLOGIES N6782A

Source Measure Unit SMU, 1-Channel, 2-Quadrant, Functional Test, 20W

KEYSIGHT TECHNOLOGIES N6782A
KEYSIGHT TECHNOLOGIES N6782A
KEYSIGHT TECHNOLOGIES N6782A
KEYSIGHT TECHNOLOGIES N6782A
KEYSIGHT TECHNOLOGIES N6782A
KEYSIGHT TECHNOLOGIES N6782A
360°
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
N6782A
Newark Part No.:
84R7987
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
N6782A   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (N6780 Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
N6780 Series

:
1Channels

:
Current/Voltage Measure, Current/Voltage Source

:
± 6V to ± 20V

:
20W

:
± 1A to ± 3A

:
1.5mohm to 3mohm

:
3 Years

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (4)

Product Overview

The Keysight N6782A is a source/measure unit (SMU) designed specifically for advanced functional testing of a device. The ability to modulate the output up to 100 kHz along with capability to source and sink current (2-quadrant operation) makes the N6782A a perfect fit for advanced functional test of a variety of devices such as DC/DC converters, power management units, power amplifiers, and power management ICs. The input stage of the DUT can be stimulated by the fast sourcing and waveform capabilities. While the output stage can be loaded down and measured with the electronic load capabilities, providing a total test solution.
  • Glitch-free sourcing and measurement ― change output and measurement ranges without any glitches
  • 2-quadrant operation ― perform as a voltage or current source or as a CV or CC electronic load
  • Four current measurement ranges ― precisely capturing current levels of the DUT during operation
  • Excellent transient response ― keep voltage or current stable during high-speed load changes
  • Fast modulation of DC ― create waveforms up to 100 kHz to stimulate or load down the DUT
  • High-speed digitized measurements ― capture/view the power consumption of the DUT

Applications

Sensing & Instrumentation, Signal Processing, Test & Measurement
