WC-041-D
THERMOCOUPLE WIRE, RTD, 82FT

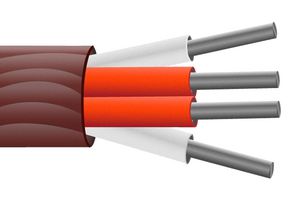

Image is for illustrative purposes only. Please refer to product description.
1 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $265.370 |
| 10+ | $229.380 |
| 25+ | $220.790 |
| 50+ | $211.450 |
| 100+ | $194.560 |
| 250+ | $171.240 |
Price for:Each
Minimum: 1
Multiple: 1
$265.37
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLABFACILITY
Manufacturer Part NoWC-041-D
Newark Part No.61AK4601
Technical Datasheet
Cable ShieldingUnshielded
Thermocouple Wire TypeRTD
No. of Conductors4Conductor
Length - Imperial82ft
Length - Metric25m
No. of Max Strands x Strand Size7 x 0.2mm
Reel Length (Imperial)82ft
Wire Gauge-
Conductor Area CSA0.219mm²
Reel Length (Metric)25m
Conductor TypeStranded
Jacket ColorBrown
Color Code StandardIEC
Conductor MaterialTinned Copper
InsulationSilicone Rubber
Operating Temperature Min-40°C
Jacket MaterialSilicone Rubber
External Diameter4mm
Operating Temperature Max200°C
Product Range-
Voltage Rating-
SVHCNo SVHC (25-Jun-2025)
Product Overview
- Silicone rubber insulated cable for extending platinum resistance thermometers
- Can be used to extend up to 4 wire RTD configurations
- Commonly used with Pt100Ω thermometers but suitable with other types Pt130/500/1000Ω etc
- 4 core silicone rubber insulated 7/0.2mm tin plated copper conductors
- Cores colour coded 2 x red / 2 x white to IEC-751
- Good electrical and mechanical properties, highly flexible
- Resistant to oils, acids and other adverse fluids
- Good heat resistance up to 200°C
- Insulation rating range from -40°C to 200°C
- Brown jacket, 25m reel length
Technical Specifications
Cable Shielding
Unshielded
No. of Conductors
4Conductor
Length - Metric
25m
Reel Length (Imperial)
82ft
Conductor Area CSA
0.219mm²
Conductor Type
Stranded
Color Code Standard
IEC
Insulation
Silicone Rubber
Jacket Material
Silicone Rubber
Operating Temperature Max
200°C
Voltage Rating
-
Thermocouple Wire Type
RTD
Length - Imperial
82ft
No. of Max Strands x Strand Size
7 x 0.2mm
Wire Gauge
-
Reel Length (Metric)
25m
Jacket Color
Brown
Conductor Material
Tinned Copper
Operating Temperature Min
-40°C
External Diameter
4mm
Product Range
-
SVHC
No SVHC (25-Jun-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
