RUSBF120
Resettable Fuse, PPTC, PolySwitch RUSBF Series, 6 VDC, 1.2 A, 2 A, 0.5 s, Round

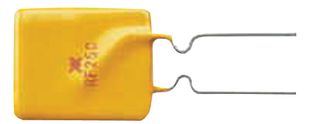

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part NoRUSBF120
Newark Part No.04H8072
Product RangePolySwitch RUSBF Series
Technical Datasheet
2,492 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $0.221 |
| 10+ | $0.221 |
| 25+ | $0.221 |
| 50+ | $0.221 |
| 100+ | $0.221 |
| 500+ | $0.221 |
Price for:Each
Minimum: 1
Multiple: 1
$0.22
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part NoRUSBF120
Newark Part No.04H8072
Product RangePolySwitch RUSBF Series
Technical Datasheet
Thermistor MountingThrough Hole
Product RangePolySwitch RUSBF Series
Voltage Rating6VDC
Holding Current1.2A
Trip Current2A
Time to Trip0.5s
Fuse ShapeRound
Current Rating Max40A
Lead Spacing5.9mm
Diameter6.9mm
Length-
Thickness3.1mm
Height11.7mm
Operating Temperature Min-40°C
Operating Temperature Max85°C
Automotive Qualification Standard-
SVHCTo Be Advised
Technical Specifications
Thermistor Mounting
Through Hole
Voltage Rating
6VDC
Trip Current
2A
Fuse Shape
Round
Lead Spacing
5.9mm
Length
-
Height
11.7mm
Operating Temperature Max
85°C
SVHC
To Be Advised
Product Range
PolySwitch RUSBF Series
Holding Current
1.2A
Time to Trip
0.5s
Current Rating Max
40A
Diameter
6.9mm
Thickness
3.1mm
Operating Temperature Min
-40°C
Automotive Qualification Standard
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
