RXEF005
Resettable Fuse, PPTC, PolySwitch RXEF Series, 60 VDC, 50 mA, 100 mA, 5 s, Round

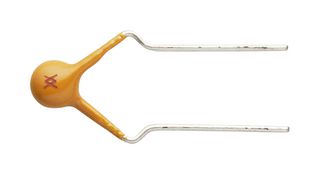

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part NoRXEF005
Newark Part No.04H8104
Product RangePolySwitch RXEF Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
| Quantity | Price |
|---|---|
| 500+ | $0.351 |
| 1000+ | $0.315 |
| 2500+ | $0.292 |
Price for:Each
Minimum: 500
Multiple: 500
$175.50
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part NoRXEF005
Newark Part No.04H8104
Product RangePolySwitch RXEF Series
Technical Datasheet
Product RangePolySwitch RXEF Series
Thermistor MountingThrough Hole
Voltage Rating60VDC
Holding Current50mA
Trip Current100mA
Time to Trip5s
Fuse ShapeRound
Current Rating Max40A
Lead Spacing5.8mm
Diameter8mm
Length-
Thickness3mm
Height8.3mm
Operating Temperature Min-40°C
Operating Temperature Max85°C
Automotive Qualification Standard-
SVHCTo Be Advised
Product Overview
RXEF005 is a RXEF series PolySwitch radial-leaded device. The RXEF series offers low hold currents (down to 50mA) and high voltage rating (up to 72V). Typical applications include satellite video receivers, industrial controls, transformers, computer motherboards, modems, USB hubs, ports and peripherals, IEEE 1394 ports, CD-ROMs, game machines, battery packs, phones, fax machines, analogue and digital line cards, and printers.
- Device compatible with high-volume electronics assembly
- UL recognized to UL 1434, CSA approved to CSA TIL No. CA-3A
- TUV approved to EN 60730-1, CQC approved to GB 8898, GB/T 7153, GB 14536.1
- Insulating material : cured, flame-retardant epoxy polymer; meets UL 94V-0
- Operation temperature range from -40°C to 85°C
- 60V DC voltage rating, 0.1A trip current
- 50mA holding current
- 0.32inch height, 0.31inch diameter, 0.11inch thickness
Technical Specifications
Product Range
PolySwitch RXEF Series
Voltage Rating
60VDC
Trip Current
100mA
Fuse Shape
Round
Lead Spacing
5.8mm
Length
-
Height
8.3mm
Operating Temperature Max
85°C
SVHC
To Be Advised
Thermistor Mounting
Through Hole
Holding Current
50mA
Time to Trip
5s
Current Rating Max
40A
Diameter
8mm
Thickness
3mm
Operating Temperature Min
-40°C
Automotive Qualification Standard
-
Alternatives for RXEF005
1 Product Found
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
