PK-27H35WQ
Transducer, Continuous, 100 dB, 3.5 kHz, Panel Mount, Internal

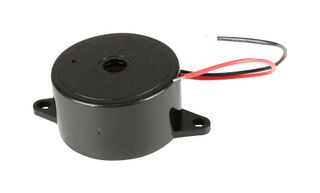

Image is for illustrative purposes only. Please refer to product description.
20 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.980 |
| 10+ | $3.980 |
| 25+ | $3.980 |
| 50+ | $3.980 |
| 100+ | $3.980 |
| 500+ | $3.980 |
| 1000+ | $3.980 |
| 2500+ | $3.980 |
Price for:Each
Minimum: 1
Multiple: 1
$3.98
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMALLORY
Manufacturer Part NoPK-27H35WQ
Newark Part No.97AK5588
Technical Datasheet
Transducer FunctionAudio Indicator
TonesContinuous
Supply Voltage Min3VDC
Sound Pressure Level (SPL)100dB
Resonant Frequency3.5kHz
Supply Voltage Max20VDC
Operating Current Max20mA
Transducer MountingPanel Mount
Drive CircuitInternal
Sound Level Distance300mm
Capacitance-
Lead Wire28AWG
IP Rating-
Housing MaterialABS (Acrylonitrile Butadiene Styrene)
Operating Voltage Range3VDC to 20VDC
Operating Temperature Min-20°C
Operating Temperature Max90°C
Product Range-
Product Overview
PK-27H35WQ is a piezo indicator.
- Flange wire mounting, continuous sound type
- 3500Hz frequency, 3 to 20VDC operating voltage
- 90 to 110dBa typical loudness at 1ft
- 20mA maximum current at 12VDC
- Size is 1.18 x 0.62inch, 12VDC rated voltage
- Constant tone/pulse rate, tin plated brass lead pins
- ABS 757 UL94HB plastic resin (black color) housing
- Operating temperature range from -20°C to +70°C
Notes
May not be suitable for all medical and aerospace applications.
Technical Specifications
Transducer Function
Audio Indicator
Supply Voltage Min
3VDC
Resonant Frequency
3.5kHz
Operating Current Max
20mA
Drive Circuit
Internal
Capacitance
-
IP Rating
-
Operating Voltage Range
3VDC to 20VDC
Operating Temperature Max
90°C
SVHC
No SVHC (23-Jan-2024)
Tones
Continuous
Sound Pressure Level (SPL)
100dB
Supply Voltage Max
20VDC
Transducer Mounting
Panel Mount
Sound Level Distance
300mm
Lead Wire
28AWG
Housing Material
ABS (Acrylonitrile Butadiene Styrene)
Operating Temperature Min
-20°C
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
