                      AT91SAM9M10-G45-EK

                      Evaluation Kit, AT91SAM9M10 MCU, USB, LCD TFT Display, Camera Interface

                      Date/Lot Code

                      MICROCHIP AT91SAM9M10-G45-EK
                      MICROCHIP AT91SAM9M10-G45-EK
                      MICROCHIP AT91SAM9M10-G45-EK
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerMICROCHIP
                      Manufacturer Part NoAT91SAM9M10-G45-EK
                      Newark Part No.68T5210
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      2 In Stock

                      Need more?

                      Same day shipping
                      Order before 9pm EST standard shipping
                      QuantityPrice
                      1+$301.620
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $301.62
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerMICROCHIP
                      Manufacturer Part NoAT91SAM9M10-G45-EK
                      Newark Part No.68T5210
                      Technical Datasheet

                      Data Sheet

                      Silicon ManufacturerAtmel
                      No. of Bits32bit
                      Silicon Family NameAT91SAM9xxx
                      Core ArchitectureARM
                      Core Sub-ArchitectureARM926
                      Silicon Core NumberSAM9G
                      Kit ContentsEval Kit AT91SAM9M10, USB, RS232 & RJ45 Cable, Power Adapter, Lithium Battery, Welcome Letter
                      Product Range-
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      The AT91SAM9M10-G45-EK is a fully featured evaluation platform for the AT91SAM9M10 or AT91SAM9G45 microcontroller.

                      • Two high speed USB hosts and one high speed USB device port
                      • An Ethernet 10/100 interface
                      • Two high speed multimedia card interfaces
                      • An LCD TFT display (480*RGB*272)
                      • A composite video output
                      • A camera interface
                      • External memory block is made of 3 memory types: DDR2-SDRAM, NAND flash, NOR flash
                      • Supports communication peripherals such as USART, SSC and Two Wire Interface (TWI)

                      Contents

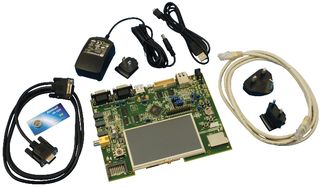

                      The SAM9M10-G45-EK board, Universal input AC/DC power supply with US, Europe and UK plug adapters, One 3V Lithium Battery type CR1225, One micro A/B type USB cable, One serial RS232 cable, One RJ45 crossed cable.

                      Warnings

                      The board must not be subjected to high electrostatic potentials. It is strongly recommend using a grounding strap or similar ESD protective device when handling the board in hostile ESD environments.

                      Technical Specifications

                      Silicon Manufacturer

                      Atmel

                      Silicon Family Name

                      AT91SAM9xxx

                      Core Sub-Architecture

                      ARM926

                      Kit Contents

                      Eval Kit AT91SAM9M10, USB, RS232 & RJ45 Cable, Power Adapter, Lithium Battery, Welcome Letter

                      SVHC

                      No SVHC (21-Jan-2025)

                      No. of Bits

                      32bit

                      Core Architecture

                      ARM

                      Silicon Core Number

                      SAM9G

                      Product Range

                      -

                      Technical Docs (3)

                      element14 Technical Page EN

                      element14 Technical Page EN

                      Technical Data Sheet EN

                      Associated Products

                      2 Products Found

                      Legislation and Environmental

                      US ECCN:3A991
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:To be advised
                      SVHC:No SVHC (21-Jan-2025)
