PIC18F26J13-I/SP
8 Bit MCU, Flash, PIC18 Family PIC18F J1x Series Microcontrollers, PIC18, 48 MHz, 64 KB, 28 Pins

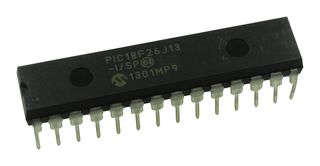

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMICROCHIP
Manufacturer Part NoPIC18F26J13-I/SP
Newark Part No.63R7827
Product RangePIC18 Family PIC18F J1x Series Microcontrollers
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 8 week(s)
| Quantity | Price |
|---|---|
| 105+ | $6.130 |
| 255+ | $5.830 |
Price for:Each
Minimum: 165
Multiple: 15
$1,011.45
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMICROCHIP
Manufacturer Part NoPIC18F26J13-I/SP
Newark Part No.63R7827
Product RangePIC18 Family PIC18F J1x Series Microcontrollers
Technical Datasheet
Base NumberPIC18F26xx
Product RangePIC18 Family PIC18F J1x Series Microcontrollers
Device CorePIC18
CPU Speed48MHz
Operating Frequency Max48MHz
Program Memory Size64KB
No. of Pins28Pins
MCU Case StyleSDIP
IC Case / PackageSDIP
No. of I/O's22I/O's
InterfacesEUSART, I2C, SPI
Embedded Interface TypeEUSART, I2C, SPI
RAM Memory Size3.67KB
ADC Channels10Channels
ADC Resolution12Bit
MCU FamilyPIC18
Supply Voltage Min2V
MCU SeriesPIC18F J1x
Supply Voltage Max3.6V
Operating Temperature Min-40°C
Operating Temperature Max85°C
IC MountingThrough Hole
Qualification-
MSL-
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
Base Number
PIC18F26xx
Device Core
PIC18
Operating Frequency Max
48MHz
No. of Pins
28Pins
IC Case / Package
SDIP
Interfaces
EUSART, I2C, SPI
RAM Memory Size
3.67KB
ADC Resolution
12Bit
Supply Voltage Min
2V
Supply Voltage Max
3.6V
Operating Temperature Max
85°C
Qualification
-
SVHC
No SVHC (25-Jun-2025)
Product Range
PIC18 Family PIC18F J1x Series Microcontrollers
CPU Speed
48MHz
Program Memory Size
64KB
MCU Case Style
SDIP
No. of I/O's
22I/O's
Embedded Interface Type
EUSART, I2C, SPI
ADC Channels
10Channels
MCU Family
PIC18
MCU Series
PIC18F J1x
Operating Temperature Min
-40°C
IC Mounting
Through Hole
MSL
-
Technical Docs (2)
Legislation and Environmental
US ECCN:3A991A2
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
