TDGL013

The TDGL013 is a Digilent PmodRTCC Peripheral Module is a real-time clock/calendar powered by Microchip's MCP79410. It is compatible with Digilent's PIC32-based Cerebot development boards (TDGL008, TDGL009, TDGL010) and can be easily connected to any system using standard IDC connectors and cables. An I²C™ interface is used to communicate with the module. The PmodRTCC provides two available alarms, 128 bytes EEPROM and 64 bytes SRAM. The multi-function pin can be accessed via a two pin header.

• Two alarms
• 128 Bytes EEPROM
• 64 Bytes SRAM
• Multifunction pin can be accessed via a two pin header

Applications

Embedded Design & Development, Clock & Timing

Contents

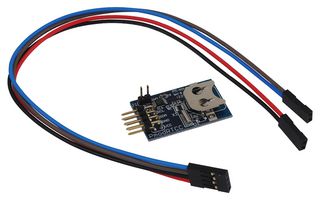

Digilent PmodRTCC peripheral module, Coin cell battery holder and 10" 4-pin MTE cable.
