220363-0800

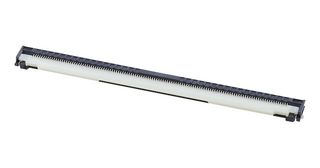

FPC CONN, R/A RCPT, 80POS, 1ROW, 0.4MM
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No220363-0800Copy
Newark Part No.78AK9916
Product RangeEasy-On FD4P 220363 Series
Your Part Number
5,640 In Stock
Need more?
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $7.090 |
| 10+ | $5.790 |
| 25+ | $5.470 |
| 50+ | $5.330 |
| 100+ | $5.190 |
| 250+ | $4.790 |
| 500+ | $4.660 |
| 1000+ | $4.340 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$7.09
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No220363-0800Copy
Newark Part No.78AK9916
Product RangeEasy-On FD4P 220363 Series
Pitch Spacing0.4mm
No. of Contacts80Contacts
Product RangeEasy-On FD4P 220363 Series
Contact Termination TypeSolder
Contact PositionBottom
No. of Rows1 Row
Contact PlatingGold Plated Contacts
Contact MaterialPhosphor Bronze
FFC / FPC Thickness0.3mm
Connector MountingSurface Mount
Connector OrientationRight Angle
SVHCNo SVHC (04-Feb-2026)
Technical Specifications
Pitch Spacing
0.4mm
Gender
Receptacle
Contact Termination Type
Solder
No. of Rows
1 Row
Contact Material
Phosphor Bronze
Connector Mounting
Surface Mount
SVHC
No SVHC (04-Feb-2026)
No. of Contacts
80Contacts
Product Range
Easy-On FD4P 220363 Series
Contact Position
Bottom
Contact Plating
Gold Plated Contacts
FFC / FPC Thickness
0.3mm
Connector Orientation
Right Angle
