UPS1J101MPD
Aluminium Electrolytic Capacitor, PS Series, 100 - F, - 20%, 63 V, 10 mm, Radial Leaded RoHS Compliant: Yes

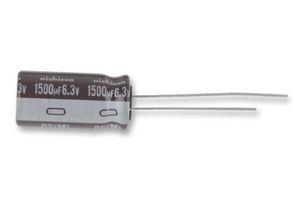

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNICHICON
Manufacturer Part NoUPS1J101MPD
Newark Part No.18K9520
Product RangeUPS Series
Technical Datasheet
2,613 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.790 |
| 10+ | $0.412 |
| 25+ | $0.401 |
| 50+ | $0.390 |
| 100+ | $0.378 |
| 500+ | $0.310 |
| 1000+ | $0.277 |
| 2500+ | $0.242 |
Price for:Each
Minimum: 5
Multiple: 5
$3.95
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNICHICON
Manufacturer Part NoUPS1J101MPD
Newark Part No.18K9520
Product RangeUPS Series
Technical Datasheet
Capacitance100µF
Voltage(DC)63V
Voltage Rating63V
Capacitance Tolerance± 20%
Capacitor TerminalsRadial Leaded
Lifetime @ Temperature1000 hours @ 105°C
PolarityPolar
Series NamePS
Capacitor Case / PackageRadial Leaded
Diameter10mm
Lead Spacing5mm
Product Diameter10mm
Product Length-
Height12.5mm
Product Width-
Product Height12.5mm
Product RangeUPS Series
Lead Diameter0.6mm
ESR-
Ripple Current390mA
Supplier Package-
Operating Temperature Min-55°C
Operating Temperature Max105°C
Qualification-
Automotive Qualification Standard-
Technical Specifications
Capacitance
100µF
Voltage Rating
63V
Capacitor Terminals
Radial Leaded
Polarity
Polar
Capacitor Case / Package
Radial Leaded
Lead Spacing
5mm
Product Length
-
Product Width
-
Product Range
UPS Series
ESR
-
Supplier Package
-
Operating Temperature Max
105°C
Automotive Qualification Standard
-
Voltage(DC)
63V
Capacitance Tolerance
± 20%
Lifetime @ Temperature
1000 hours @ 105°C
Series Name
PS
Diameter
10mm
Product Diameter
10mm
Height
12.5mm
Product Height
12.5mm
Lead Diameter
0.6mm
Ripple Current
390mA
Operating Temperature Min
-55°C
Qualification
-
SVHC
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (27-Jun-2024)
Technical Docs (1)
Alternatives for UPS1J101MPD
4 Products Found
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (27-Jun-2024)
