UVP1J3R3MDD1TD
Electrolytic Capacitor, Bi-Polar, 3.3 µF, 63 V, ± 20%, PC Pin, 10000 hours @ 105°C

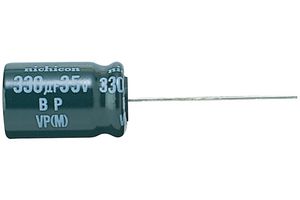

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNICHICON
Manufacturer Part NoUVP1J3R3MDD1TD
Newark Part No.65R2667
Product RangeUVP Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 21 week(s)
Product Information
ManufacturerNICHICON
Manufacturer Part NoUVP1J3R3MDD1TD
Newark Part No.65R2667
Product RangeUVP Series
Technical Datasheet
Capacitance3.3µF
Voltage(DC)63V
Capacitance Tolerance± 20%
Capacitor TerminalsPC Pin
Capacitor Case / PackageRadial Leaded
PolarityBi-Polar [Non-Polar]
Lead Spacing2mm
Product Diameter5mm
Product Length-
Product Width-
Lifetime @ Temperature10000 hours @ 105°C
ESR-
Product Height11mm
Product RangeUVP Series
Qualification-
Ripple Current28mA
Operating Temperature Min-40°C
Operating Temperature Max85°C
Technical Specifications
Capacitance
3.3µF
Capacitance Tolerance
± 20%
Capacitor Case / Package
Radial Leaded
Lead Spacing
2mm
Product Length
-
Lifetime @ Temperature
10000 hours @ 105°C
Product Height
11mm
Qualification
-
Operating Temperature Min
-40°C
SVHC
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
Voltage(DC)
63V
Capacitor Terminals
PC Pin
Polarity
Bi-Polar [Non-Polar]
Product Diameter
5mm
Product Width
-
ESR
-
Product Range
UVP Series
Ripple Current
28mA
Operating Temperature Max
85°C
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
