MAC57D5MB
Evaluation Board, MAC57D5, ARM, Cortex-A5, Cortex-M4, Cortex-M0+, 32Bit

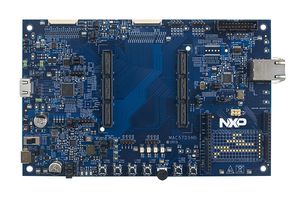

Image is for illustrative purposes only. Please refer to product description.
2 In Stock
Need more?
1 US Stock delivery in 2-3 Business Days Order before 6pm EST Standard Shipping
1 UK Stock available for delivery in 4-6 Business Days
Order before 6pm
| Quantity | Price |
|---|---|
| 1+ | $1,089.080 |
Price for:Each
Minimum: 1
Multiple: 1
$1,089.08
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerNXP
Manufacturer Part NoMAC57D5MBCopy
Newark Part No.95Y0267
Silicon ManufacturerNXP
No. of Bits32bit
Silicon Family NameMAC57D5xx
Core ArchitectureARM
Core Sub-ArchitectureCortex-A5, Cortex-M4, Cortex-M0+
Silicon Core NumberMAC57D5
Kit ContentsEvaluation Board MAC57D5
Product Range-
SVHCTo Be Advised
Product Overview
MAC57D5MB is a MAC57D5xx Mother Board (MB) customer evaluation board. The EVB is intended to provide a low cost mechanism for customer evaluation of the MAC57D5xx family of microcontrollers, and to facilitate hardware and software development. The EVB is intended for bench / laboratory use.
- Power switch and regulators status LED’s
- High speed CAN transceiver
- LIN interface
- Ethernet PHY and RJ45 socket configurable as RMII or MII
- 20-pin JTAG
- ARM Cortex connector
- ART ETM connector
- User RESET switch, user LED’s, user pushbutton switches, potentiometer connected to analogue i/p CH
- VIU interface, TFT display interface with backlight power supply for EastRising - ER-TFT050-3
- 2 stepper motors connectors
Technical Specifications
Silicon Manufacturer
NXP
Silicon Family Name
MAC57D5xx
Core Sub-Architecture
Cortex-A5, Cortex-M4, Cortex-M0+
Kit Contents
Evaluation Board MAC57D5
SVHC
To Be Advised
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
MAC57D5
Product Range
-
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
