PCAL9722HN-ARD

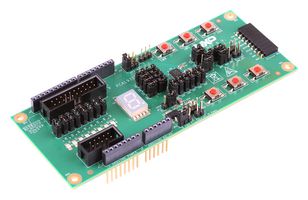

PCAL9722HN-ARD is an ultra low-voltage translating 22-bit SPI I/O expander with Agile I/O features, interrupt output and reset evaluation board. The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems. Suitable for consumer (battery-powered mobile) and industrial (Keypad) applications.

• Agile I/O
• USB interface to the host PC
• Ultra low-voltage translating 22-bit SPI I/O expander
• Convenient test points for easy scope measurements and signal access
• Easy to use GUI based software demonstrates the capabilities of the PCAL9722HN
• On board LEDs, 7 segment display and key switches for PCAL9722HN general purpose I/O evaluation

Contents

Assembled and tested the evaluation board in an antistatic bag, Quick start guide.
