MJD2955G
Bipolar (BJT) Single Transistor, General Purpose, PNP, 60 V, 10 A, 1.75 W, TO-252 (DPAK)

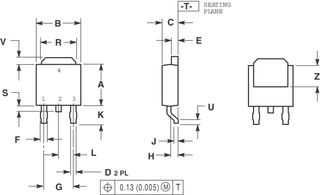

Image is for illustrative purposes only. Please refer to product description.
ManufacturerONSEMI
Manufacturer Part NoMJD2955G
Newark Part No.45J1488
Product RangeMJxxxx Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
| Quantity | Price |
|---|---|
| 500+ | $0.659 |
| 1000+ | $0.576 |
| 2500+ | $0.465 |
| 10000+ | $0.451 |
Price for:Each
Minimum: 675
Multiple: 75
$444.83
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerONSEMI
Manufacturer Part NoMJD2955G
Newark Part No.45J1488
Product RangeMJxxxx Series
Technical Datasheet
Transistor PolarityPNP
Collector Emitter Voltage V(br)ceo60V
Collector Emitter Voltage Max60V
Continuous Collector Current10A
Power Dissipation Pd1.75W
Power Dissipation1.75W
DC Collector Current10A
DC Current Gain hFE2hFE
Transistor MountingSurface Mount
No. of Pins4Pins
Transistor Case StyleTO-252 (DPAK)
Transition Frequency2MHz
DC Current Gain hFE Min2hFE
Operating Temperature Max150°C
QualificationAEC-Q101
Product RangeMJxxxx Series
Automotive Qualification StandardAEC-Q101
SVHCLead
Technical Specifications
Transistor Polarity
PNP
Collector Emitter Voltage Max
60V
Power Dissipation Pd
1.75W
DC Collector Current
10A
Transistor Mounting
Surface Mount
Transistor Case Style
TO-252 (DPAK)
DC Current Gain hFE Min
2hFE
Qualification
AEC-Q101
Automotive Qualification Standard
AEC-Q101
SVHC
Lead
Collector Emitter Voltage V(br)ceo
60V
Continuous Collector Current
10A
Power Dissipation
1.75W
DC Current Gain hFE
2hFE
No. of Pins
4Pins
Transition Frequency
2MHz
Operating Temperature Max
150°C
Product Range
MJxxxx Series
MSL
MSL 1 - Unlimited
Technical Docs (2)
Alternatives for MJD2955G
2 Products Found
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
