                      AQV252G3SX

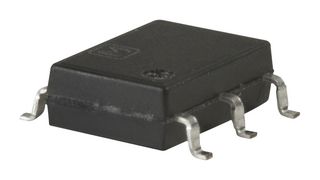

                      MOSFET Relay, Miniature, SPST-NO (1 Form A), AC / DC, 60 V, 3.3 A, SOP-6, Surface Mount

                      PANASONIC AQV252G3SX
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerPANASONIC
                      Manufacturer Part NoAQV252G3SX
                      Newark Part No.44AC0201
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      973 In Stock

                      Need more?

                      Same day shipping
                      Order before 9pm EST standard shipping
                      QuantityPrice
                      1+$14.590
                      10+$13.000
                      25+$11.710
                      50+$11.430
                      100+$11.170
                      250+$11.050
                      500+$10.670
                      Price for:Each (Supplied on Cut Tape)
                      Minimum: 1
                      Multiple: 1
                      $14.59
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerPANASONIC
                      Manufacturer Part NoAQV252G3SX
                      Newark Part No.44AC0201
                      Technical Datasheet

                      Data Sheet

                      Load Voltage Max60V
                      Load Current3.3A
                      Forward Current If50mA
                      On State Resistance Max0.06ohm
                      Isolation Voltage1.5kV
                      I/O Capacitance Typ0.8pF
                      Off State Leakage Current Max1µA
                      SVHCNo SVHC (23-Jan-2024)

                      Product Overview

                      AQV252G3SX is a PhotoMOS® Miniature HE SOP 1 Form A relay with a high capacity of 3.3A load current. Greatly improved specifications allow users to use this in place of mercury and mechanical relays. Typical application includes security equipment, fire-preventing system, industrial machine, and thermostat (HVAC temperature controller). Standards are UL (E191218).

                      • AC/DC dual use, 60V output load voltage, 3.3A output load current
                      • Surface mount terminal
                      • 0.5mA typ input LED operate current (25°C), 1.32V typ LED dropout voltage (1.14V at IF = 5mA, 25°C)
                      • 450mW output power dissipation (25°C)
                      • 1.8ms typ turn on time (IF = 5mA, 25°C), 0.15ms typ turn off time (IF = 5mA, 25°C)
                      • 0.8pF typ I/O capacitance (f = 1MHz, VB = 0V, 25°C)
                      • 1,000Mohm min initial I/O isolation resistance (500VDC, 25°C)
                      • SOP6-pin package, ambient operating temperature range from -40°C to +85°C

                      Technical Specifications

                      Load Voltage Max

                      60V

                      Forward Current If

                      50mA

                      Isolation Voltage

                      1.5kV

                      Off State Leakage Current Max

                      1µA

                      Load Current

                      3.3A

                      On State Resistance Max

                      0.06ohm

                      I/O Capacitance Typ

                      0.8pF

                      SVHC

                      No SVHC (23-Jan-2024)

                      Technical Docs (2)

                      Technical Data Sheet EN

                      Product Change Notice EN

                      Legislation and Environmental

                      US ECCN:EAR99
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (23-Jan-2024)
                      Download Product Compliance Certificate

                      Product Compliance Certificate
