                      EVAL_PAN1026

                      Evaluation Kit, Bluetooth® Module, PAN1026

                      PANASONIC EVAL_PAN1026
                      PANASONIC EVAL_PAN1026
                      PANASONIC EVAL_PAN1026
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerPANASONIC
                      Manufacturer Part NoEVAL_PAN1026
                      Newark Part No.11X2764
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      Unable to Retrieve Availability Information

                      Product Information

                      ManufacturerPANASONIC
                      Manufacturer Part NoEVAL_PAN1026
                      Newark Part No.11X2764
                      Technical Datasheet

                      Data Sheet

                      Silicon ManufacturerToshiba
                      Silicon Core NumberTC35661
                      Kit Application TypeWireless Connectivity
                      Application Sub TypeBluetooth

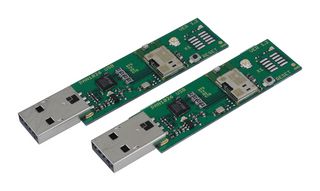

                      Kit ContentsEvaluation Board TC35661, 2 x PAN1026ETU Development Module
                      Product Range-
                      SVHCNo SVHC (23-Jan-2024)

                      Product Overview

                      EVAL_PAN1026 is a PAN1026 evaluation kit. The Bluetooth dual mode, place and play RF module, the PAN1026 featuring an embedded ARM processor, Bluetooth 4.0, serial port profile (SPP), command set API and integrated antenna. This cost-engineered solution is based on a single chip solution that integrates an ARM processor with a Bluetooth controller. Bluetooth 4.0 combines the data rate of Bluetooth Classic (3Mb/s) and ultra-fast connection time of Bluetooth Low Energy (3mS). Bluetooth Low Energy is designed to create low data rate networks using a minimum amount of power. The embedded serial port profile (SPP) frees application resources while the command set API creates a simple but flexible firmware interface. An onboard antenna does away with 2.4GHz RF circuit complexity. Typical applications include iOS and Android devices, wireless sensors, cable replacement, instrumentation, medical and automotive.

                      • Bluetooth version 4.0
                      • Industrial temperature range from -40 to +85°C
                      • High sensitivity of -87dbm
                      • Output power of 4dbm
                      • Single VCC supply of 1.7 to 3.6V
                      • Wi-Fi coexistence
                      • High-speed interfaces: USB 2.0 UART up to 4.3Mbps
                      • Integrated ARM 32bit processor

                      Technical Specifications

                      Silicon Manufacturer

                      Toshiba

                      Kit Application Type

                      Wireless Connectivity

                      Kit Contents

                      Evaluation Board TC35661, 2 x PAN1026ETU Development Module

                      SVHC

                      No SVHC (23-Jan-2024)

                      Silicon Core Number

                      TC35661

                      Application Sub Type

                      Bluetooth

                      Product Range

                      -

                      Technical Docs (3)

                      Technical Data Sheet EN

                      element14 Technical Page EN

                      element14 Technical Page EN

                      Legislation and Environmental

                      US ECCN:5A992
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (23-Jan-2024)
