BS22-M

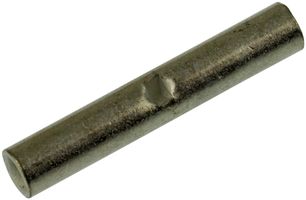

Butt Splice, BS Series, 26 AWG, 22 AWG, 0.5 mm², Uninsulated
Available to Order
Manufacturer Standard Lead Time: 11 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $0.496 |
| 2000+ | $0.462 |
| 5000+ | $0.423 |
| 10000+ | $0.391 |
Price for:Each
Minimum: 1
Multiple: 1
$0.50
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerPANDUIT
Manufacturer Part NoBS22-MCopy
Manufacturer Standard Lead Time11 weeks
Newark Part No.14AC1953
Product RangeBS Series
Also Known AsGTIN UPC EAN: 07498383013
Insulator Colour-
Product RangeBS Series
Wire Size AWG Min26AWG
Wire Size AWG Max22AWG
Conductor Area CSA0.5mm²
Insulator MaterialUninsulated
SVHCNo SVHC (04-Feb-2026)
Product Overview
- Pan-Term® non-insulated butt splice
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Butted configuration provides low profile for limited space applications
- Internal wire stop assures proper length of insertion into terminal barrel
- Non-insulated barrel can be used to provide an economical termination
Technical Specifications
Insulator Colour
-
Wire Size AWG Min
26AWG
Conductor Area CSA
0.5mm²
SVHC
No SVHC (04-Feb-2026)
Product Range
BS Series
Wire Size AWG Max
22AWG
Insulator Material
Uninsulated
Technical Docs (1)
Associated Products
6 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
