60536-20R0-FB5Q
Resistor, 20 ohm, 600 Series, 7.5 W, ± 1%, Solder Lug, 160 V
.jpg){kind=logo}

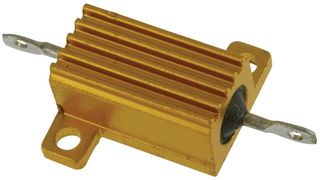

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRCD (RESISTORS COILS DELAYLINES)
Manufacturer Part No60536-20R0-FB5Q
Newark Part No.34P0534
Product Range600 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 22 week(s)
| Quantity | Price |
|---|---|
| 500+ | $22.950 |
Price for:Each
Minimum: 1000
Multiple: 100
$22,950.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRCD (RESISTORS COILS DELAYLINES)
Manufacturer Part No60536-20R0-FB5Q
Newark Part No.34P0534
Product Range600 Series
Technical Datasheet
Resistance20ohm
Product Range600 Series
Resistance Tolerance± 1%
Resistor Case / Package-
Power Rating7.5W
Resistor TerminalsSolder Lug
Voltage Rating160V
Temperature Coefficient± 20ppm/°C
Resistor TechnologyWirewound
Resistor TypeHigh Power, High Pulse
Resistor MountingPanel Mount
Product Length15.2mm
Product Width8.5mm
Product Height8.2mm
Operating Temperature Min-55°C
Operating Temperature Max250°C
Qualification-
SVHCLead
Product Overview
The 600 series Fixed Resistor made of aluminium housing. Additional modifications are un-anodized cases, custom marking, increased dielectric/creepage and working voltage, low thermal EMF.
- Customized components are an RCD specialty
- High power and high pulse capacity in compact size
- Welded wire-wound construction, low noise
- Available on exclusive SWIFT™ delivery program
- Non-inductive
- Increased pulse capability
- Increased power
- High Power Resistor
Technical Specifications
Resistance
20ohm
Resistance Tolerance
± 1%
Power Rating
7.5W
Voltage Rating
160V
Resistor Technology
Wirewound
Resistor Mounting
Panel Mount
Product Width
8.5mm
Operating Temperature Min
-55°C
Qualification
-
Product Range
600 Series
Resistor Case / Package
-
Resistor Terminals
Solder Lug
Temperature Coefficient
± 20ppm/°C
Resistor Type
High Power, High Pulse
Product Length
15.2mm
Product Height
8.2mm
Operating Temperature Max
250°C
SVHC
Lead
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:Lead
