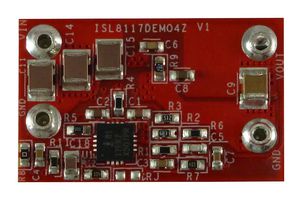

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | RENESAS |
|---|---|
| Manufacturer Part No | ISL8117DEMO4ZCopy |
| Manufacturer Standard Lead Time | 37 weeks |
| Newark Part No. | 50AC5241 |
| Your Part Number |
Available to Order
Manufacturer Standard Lead Time: 37 week(s)
| Quantity | Price |
|---|---|
| 1+ | $139.230 |
Price for:Each
Minimum: 1
Multiple: 1
$139.23
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RENESAS |
|---|---|
| Manufacturer Part No | ISL8117DEMO4ZCopy |
| Manufacturer Standard Lead Time | 37 weeks |
| Newark Part No. | 50AC5241 |
| Silicon Manufacturer | Intersil |
| Silicon Core Number | ISL8117 |
| Kit Application Type | Power Management |
| Application Sub Type | Synchronous Buck Controller |
| Kit Contents | Demo Board ISL8117 |
| Product Range | - |
| Automotive Qualification Standard | - |
| SVHC | To Be Advised |
Product Overview
ISL8117DEMO4Z is an ISL8117 demonstration board. The ISL8117 is a 60V high voltage synchronous buck controller that offers external soft-start, independent enable functions and integrates UV/OV/OC/OT protection. Its current mode control architecture and internal compensation network keep peripheral component count minimally. Programmable switching frequency ranging from 100kHz to 2MHz helps to optimize inductor size while the strong gate driver delivers up to 30A for the buck output.
- Small, compact design
- Wide input range from 6V to 60V
- High light-load efficiency in pulse skipping DEM operation
- Programmable soft-start
- Optional DEM/CCM operation
- Supports pre-bias output with SR soft-start
- External frequency synchronous
- PGOOD indicator
- OCP, OVP, OTP and UVP protection
Technical Specifications
| Silicon Manufacturer | Intersil |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Demo Board ISL8117 |
| Automotive Qualification Standard | - |
| Silicon Core Number | ISL8117 |
|---|---|
| Application Sub Type | Synchronous Buck Controller |
| Product Range | - |
| SVHC | To Be Advised |
Technical Docs (2)
Legislation and Environmental
| US ECCN: | Unknown |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
