25MH510MEFC5X5
Electrolytic Capacitor, Miniature, 10 µF, 25 V, ± 20%, PC Pin, 2000 hours @ 105°C, Polar

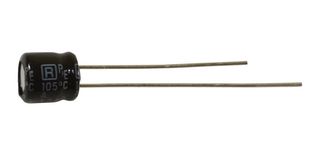

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRUBYCON
Manufacturer Part No25MH510MEFC5X5
Newark Part No.39T8668
Product RangeMH5 Series
Technical Datasheet
4,377 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $0.078 |
Price for:Each
Minimum: 1
Multiple: 1
$0.08
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRUBYCON
Manufacturer Part No25MH510MEFC5X5
Newark Part No.39T8668
Product RangeMH5 Series
Technical Datasheet
Capacitance10µF
Voltage(DC)25V
Product RangeMH5 Series
Capacitance Tolerance± 20%
Capacitor TerminalsPC Pin
PolarityPolar
Capacitor Case / PackageRadial Leaded
Lead Spacing2mm
Product Diameter5mm
Product Length-
Lifetime @ Temperature2000 hours @ 105°C
Product Width-
Product Height5mm
ESR-
Qualification-
Ripple Current22mA
Operating Temperature Min-40°C
Operating Temperature Max105°C
Alternatives for 25MH510MEFC5X5
5 Products Found
Product Overview
The MH5 series general purpose Radial Leaded Miniature Aluminium Electrolytic Capacitor with capacitance tolerance of ±20% (20℃, 120Hz). It features low profile and miniaturized design.
- -40 to 105°C Temperature range
- 6.3 to 50VDC Rated voltage range
- 5mm Height
Technical Specifications
Capacitance
10µF
Product Range
MH5 Series
Capacitor Terminals
PC Pin
Capacitor Case / Package
Radial Leaded
Product Diameter
5mm
Lifetime @ Temperature
2000 hours @ 105°C
Product Height
5mm
Qualification
-
Operating Temperature Min
-40°C
SVHC
No SVHC (17-Jan-2023)
Voltage(DC)
25V
Capacitance Tolerance
± 20%
Polarity
Polar
Lead Spacing
2mm
Product Length
-
Product Width
-
ESR
-
Ripple Current
22mA
Operating Temperature Max
105°C
