VW3A3607
Communication Card, Profibus DP V1, Altivar, Lexium, 9 Way Female SUB-D Connector

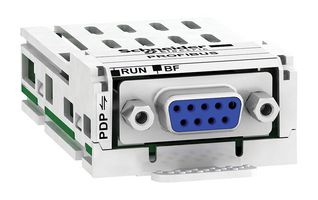

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 2 week(s)
Product Information
ManufacturerSCHNEIDER ELECTRIC
Manufacturer Part NoVW3A3607
Newark Part No.26Y5217
Technical Datasheet
Current Rating-
Product Range-
SVHCTo Be Advised
Product Overview
The VW3A3607 is a Communication Card with Profibus DP V1 protocol and 1 female connector D-sub 9 electrical connection. The diagnostic function is diagnostic data with VSD status, host drive handled from two masters (MS0 and MS1) and standard identification and maintenance requests. It is compatible with the Altivar 32, Lexium 32, Altivar Process and Altivar Easy 610 speed drives.
- CiA 402 and PROFIdrive bus profile
Applications
Automation & Process Control
Technical Specifications
Current Rating
-
SVHC
To Be Advised
Product Range
-
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
