EVALUATION KIT SLF3S-1300F

SLF3S-1300F liquid flow sensor evaluation kit. The SLF3S-1300F is compact liquid flow sensor designed for high volume applications. It enables precise and reliable measurements of dynamic liquid flow rates up to 40ml/min bi-directionally. The sensor features a digital interface (I2C) via a 6-pin standard electrical connector. The SLF3S-1300F builds on the latest generation CMOSens® sensor chip that is at the heart of Sensirion’s flow sensing platform and allows achieving an outstanding performance.

• Fast and easy technology evaluation
• Calibrated for H2O and IPA
• Temperature compensated
• Turn down ratio 200:1 or better
• Very compact and light-weight form factor
• Response time below 20ms

Contents

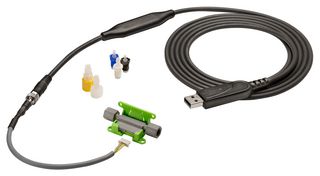

SLF3S-1300F liquid flow sensor, SLF3x mounting clamp to enable mechanical fixation of the sensor, SCC1-USB sensor cable with USB connector for plug-and-play connection to a PC, Adapter cable from 6-pin connector to 4-pin M8 which serves as link between sensor and SCC1-US sensor cable, Ribbon cable from 6-pin connector to pigtail, A set of fluidic fittings, PC software (viewer and data export tool).
