ULN2003D1013TR
DARLINGTON TRANSISTOR ARRAY, NPN, 7, 50V, SOIC

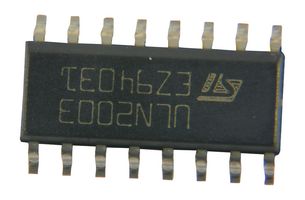

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoULN2003D1013TR
Newark Part No.89K1131
Technical Datasheet
1,166 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $0.985 |
| 10+ | $0.811 |
| 25+ | $0.722 |
| 50+ | $0.647 |
| 100+ | $0.559 |
| 250+ | $0.497 |
| 500+ | $0.401 |
| 1000+ | $0.387 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.98
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoULN2003D1013TR
Newark Part No.89K1131
Technical Datasheet
Supply Voltage Min-V
Supply Voltage Max3V
No. of Outputs7Outputs
Output Voltage50V
Output Current500mA
Driver Case StyleNSOIC
No. of Pins16Pins
Operating Temperature Max85°C
Product Range-
MSLMSL 2 - 1 year
SVHCNo SVHC (15-Jan-2018)
Alternatives for ULN2003D1013TR
2 Products Found
Product Overview
The ULN2003D1013TR is a high voltage/current Darlington Transistor Array, each containing seven open collector Darlington pairs with common emitters. Each channel rated at 500mA and can withstand peak currents of 600mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout. These versatile devices are useful for driving a wide range of loads including solenoids, relays DC motors, LED displays filament lamps, thermal printheads and high power buffers.
- Seven Darlingtons per Package
- 50V Output Voltage
- Outputs Can be Paralleled for Higher Current
- Integrated Suppression Diodes for Inductive Loads
- TTL/CMOS/PMOS/DTL Compatible Inputs
Applications
Power Management, Industrial
