2204748-8
Heavy Duty Connector Base, ELCON Micro Series, Cable Mount

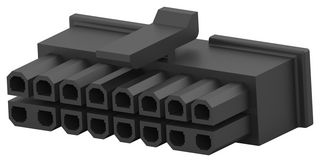

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part No2204748-8
Newark Part No.41AH7743
Product RangeELCON Micro Series
Technical Datasheet
Unable to Retrieve Availability Information
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part No2204748-8
Newark Part No.41AH7743
Product RangeELCON Micro Series
Technical Datasheet
Product RangeELCON Micro Series
Connector MountingCable Mount
Rectangular Shell Size-
For Use WithAMP ELCON Micro Series 2204749 Socket Contacts
Connector Body MaterialThermoplastic Body
Locking TypeLatch
SVHCNo SVHC (17-Jan-2022)
Product Overview
2204748-8 is a ELCON cable housing. Applications include servers, switch/routers, power supplies and distribution, gaming machines, printers, security systems, business retail equipment (BRE), dryers, refrigerator, test equipment, measurement equipment, diagnostic equipment, patient monitor.
- ELCON MICRO, 16 position, dual row, 0.118inch receptacle housing
- 600VAC operating voltage
- 600VDC operating voltage
- Nylon 66 housing material
- UL 94V-0 UL flammability rating
- Operating temperature range from -40 to 105°C
- Low contact resistance of 5mohm max provides lower temperature rise and lower power loss
- Copper alloy, tin plating contacts material, thermo plastic, UL 94-V0 housing
- Temperature rating range from -40 to 105°C
Technical Specifications
Product Range
ELCON Micro Series
Rectangular Shell Size
-
Connector Body Material
Thermoplastic Body
SVHC
No SVHC (17-Jan-2022)
Connector Mounting
Cable Mount
For Use With
AMP ELCON Micro Series 2204749 Socket Contacts
Locking Type
Latch
Technical Docs (3)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
