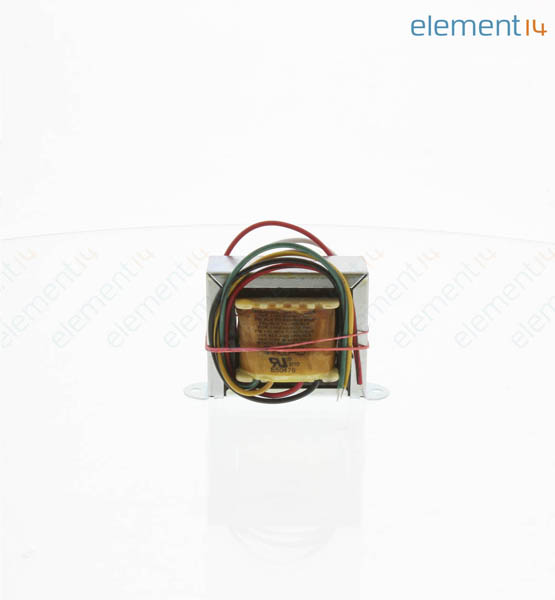

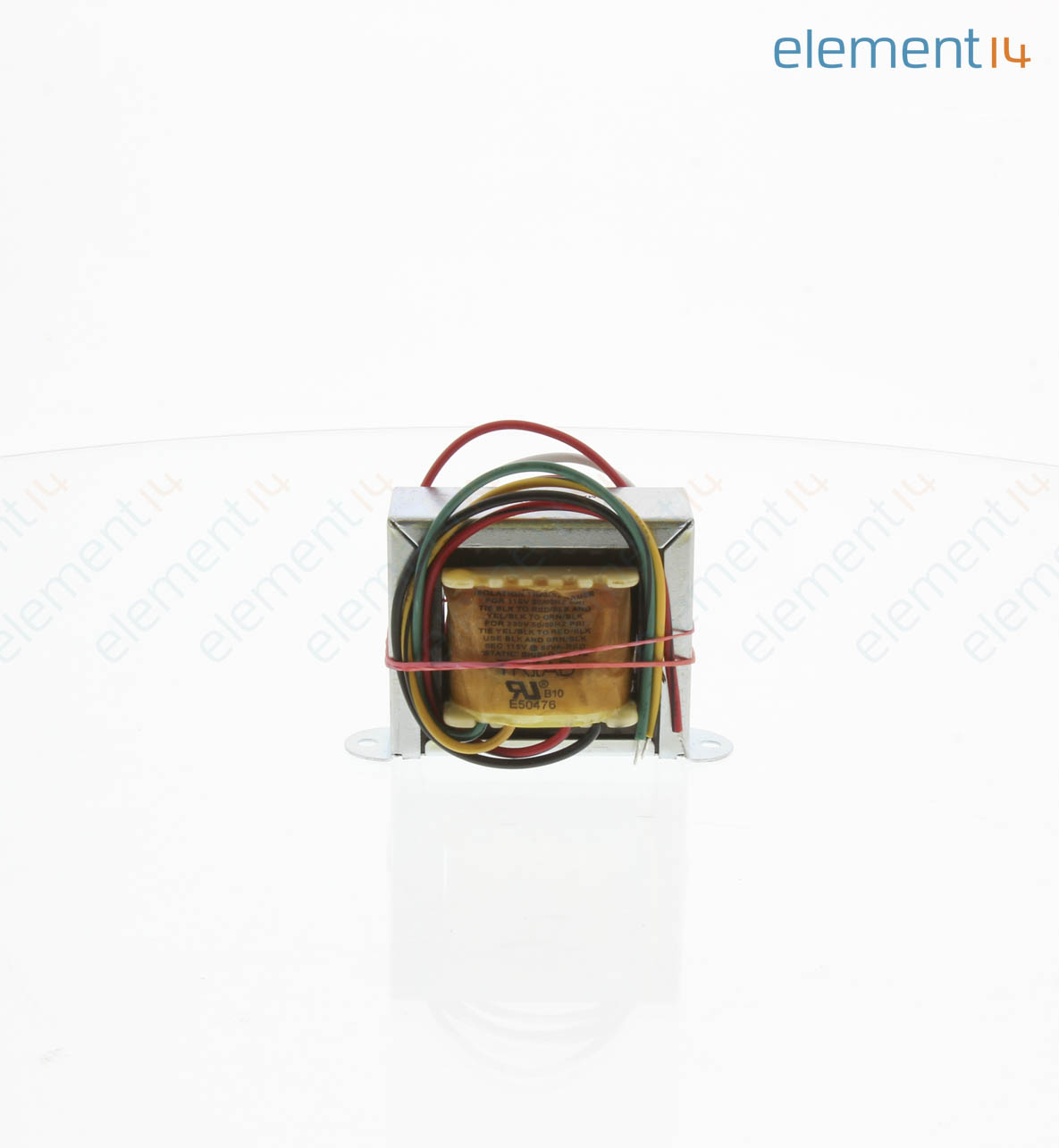

TRIAD MAGNETICS N68X
Chassis Mount Transformer, Power, Safety Isolating, 2 x 115V, 50 VA, 50Hz / 60Hz
Date/Lot Code
- Manufacturer:
- TRIAD MAGNETICS TRIAD MAGNETICS
- Manufacturer Part No:
- N68X
- Newark Part No.:
- 18M9252
-
- Product Range
- N Series
- Technical Datasheet:
- N68X Datasheet
- ECAD / MCAD
-
Product Range Selector (N Series)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Safety Isolating
- :
- 50VA
- :
- 115V
- :
- 2 x 115V
- :
- 435mA
- :
- 50Hz / 60Hz
- :
- Dual Primary, Single Secondary
- :
- Wire Leaded
- :
- 1.5kV
- :
- N Series
Technical Documents (4)
Product Overview
The N68X is an Isolation Power Transformer for isolating equipment from direct connection to the power line. The transformer is constructed with non-concentrically wound coils. The primary and secondary are wound on separate arbors, then assembled on a laminate core side-by-side separated by insulation. This prevents electrical connection, under normal or overload conditions, between the primary and secondary windings. These hospital type units are offered with a resettable circuit breaker, providing protection from overload and short circuit. Triad isolation transformer is also offered in hospital type (designed with an MD suffix) which are designed and constructed to meet the low leakage current requirements for today's medical equipment.
- Constructed with non-concentrically wound coil
- Leads connections
Applications
Power Management
63 In stock Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
Extra stock is available upon order to the Supplier Lead Time which is approximately 06/05/24
Same day shipping
More stock available week commencing 06/05/24
×
Order before 5.45pm EST standard shipping
Monday to Friday excluding National Holidays
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
