MM700B-NIST

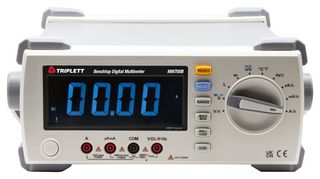

MM700B-NIST is a True RMS benchtop digital multimeter including certificate of traceability to N.I.S.T. It is a versatile tool designed for various benchwork applications. This AC-powered TRMS meter offers superior accuracy and quick response, making it perfect for any task. It measures a range of parameters including AC/DC voltage and current, µA current, resistance, temperature, capacitance, frequency, inductance, and duty cycle. Moreover, it conducts diode, continuity, hFE, SCR, and equivalent resistance tests. With a 6000 count LED display complemented by a bar graph, auto/manual ranging, Min/Max, Data Hold, and Relative mode, the MM700B brings precision to your fingertips. It also includes a USB interface, allowing for up to 20,000 data groups recording, historical data access, and trend chart viewing. Typical applications include component testing, PC board testing and repair, product design and testing, student engineering and electronics labs.

• Measures 750VAC, 1000VDC voltage, 10A AC/DC current, 600µA AC/DC µA current, 60Mohm resistance
• Measures -40 to 1832°F temperature, 6mF capacitance, 60H inductance, 20MHz frequency
• USB interface with remote viewing and control/data analysis software
• CAT II 600V safety category
• cETLus listed
• 1-year warranty
• Dimension is 12.6 x 10.4 x 4.3"

Contents

True RMS benchtop digital multimeter, AC power cord, Test leads, Alligator clip short test leads, Multifunction test socket, Type K temperature probe, USB cable/software.
