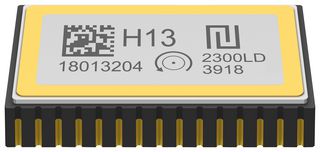

GYPRO2300LD

GYPRO® low delay configuration micro-electro mechanical systems (MEMS) angular rate sensor. The sensor is factory calibrated and compensated for temperature effects to provide high-accuracy digital output over a broad temperature range. This is specially designed for demanding applications such as precision instrumentation, unmanned vehicles, GPS assistance, platform stabilization and control.

• High performance MEMS angular rate sensor
• 24bit angular rate output with digital SPI interface
• Excellent bias instability of 0.8°/hour
• Ultra low noise of 0.1°/√h
• Embedded temperature sensor for on-chip or external temperature compensation
• Built-in self-test
• Greater than 200Hz bandwidth, 1700Hz data rate and 2ms latency

Applications

Instrumentation, Mechanical
