BI2-EG08K-AP6X-V1131
INDUCTIVE PROX SENSOR/3WIRE/PNP-NO/30VDC

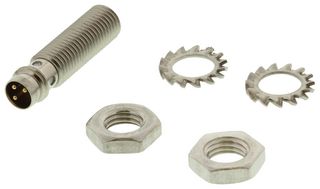

Image is for illustrative purposes only. Please refer to product description.
16 In Stock
5 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $230.880 |
Price for:Each
Minimum: 1
Multiple: 1
$230.88
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTURCK
Manufacturer Part NoBI2-EG08K-AP6X-V1131
Newark Part No.35R7843
Technical Datasheet
Product Range-
Sensor TypeInductive
Operating Temperature Max70°C
Sensing Distance Min-
Sensing Distance Max-
Sensing Distance Nom2mm
Supply Voltage Min10VDC
Supply Voltage Max30VDC
Sensor Output Type3-Wire, PNP, NO
Sensor Case / Package-
Sensor TerminalsM8 Connector
Sensor Body Material303 Stainless Steel
IP RatingIP67
Operating Temperature Min-25°C
SVHCLead
Product Overview
BI2-EG08K-AP6X-V1131 is an inductive sensor with increased switching distance. It detects metal objects contactless and wear-free. For this, it uses a high-frequency electromagnetic AC field that interacts with the target. An inductive sensor generates this field via an RLC circuit with a ferrite coil.
- M8 × 1 threaded barrel, stainless steel, 1.4305 (AISI 303) housing
- Large sensing range, NO contact, PNP output, M8 x 1 male connector
- 2mm rated switching distance, flush mounting conditions
- ≤ (0.81 × Sn)mm secured operating distance, ≤2% of full scale repeat accuracy
- Operating voltage range from 10 to 30VDC, ≤150mA DC rated operational current
- ≤ 0.1mA residual current, ≤ 0.5KV isolation test voltage
- Short-circuit protection, wire breakage/reverse polarity protection
- 3KHz switching frequency, threaded barrel M8 x 1 design, 31mm dimension
- 5Nm max tightening torque of housing nut, M8 × 1 connector electrical connection
- Ambient temperature range from -25 to +70°C
Technical Specifications
Product Range
-
Operating Temperature Max
70°C
Sensing Distance Max
-
Supply Voltage Min
10VDC
Sensor Output Type
3-Wire, PNP, NO
Sensor Terminals
M8 Connector
IP Rating
IP67
SVHC
Lead
Sensor Type
Inductive
Sensing Distance Min
-
Sensing Distance Nom
2mm
Supply Voltage Max
30VDC
Sensor Case / Package
-
Sensor Body Material
303 Stainless Steel
Operating Temperature Min
-25°C
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
