7427521
Ferrite Bead, 52 ohm, 5 A, WE-CMS Series, 0.003 ohm, ± 25%

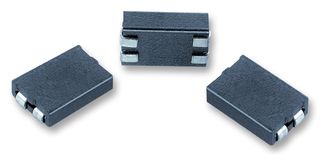

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No7427521
Newark Part No.46T8769
Product RangeWE-CMS Series
Technical Datasheet
826 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.670 |
| 10+ | $3.600 |
| 25+ | $3.550 |
| 50+ | $3.480 |
| 100+ | $3.340 |
| 250+ | $3.280 |
| 500+ | $3.210 |
Price for:Each (Supplied on Cut Tape)
Minimum: 5
Multiple: 5
$18.35
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No7427521
Newark Part No.46T8769
Product RangeWE-CMS Series
Technical Datasheet
Ferrite Bead Case / Package-
Impedance52ohm
DC Current Rating5A
Product RangeWE-CMS Series
DC Resistance Max0.003ohm
Impedance Tolerance± 25%
Product Length8.9mm
Product Width5.6mm
Product Height3.2mm
Ferrite MountingSMD
Operating Temperature Min-40°C
Operating Temperature Max125°C
Qualification-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 7427521 is a common mode surface-mount Ferrite Bead. This WE-CMS bead features maximum current capability and low DC resistance.
- 3°C/s Maximum ramp-up rate
- 6°C/s Maximum ramp-down rate
- -40 to 125°C Operating temperature range
Applications
Industrial, Power Management, Consumer Electronics
Warnings
Cleaning agents that are used to clean the customer application might damage or change the characteristics of the component, body, pins or termination.
Technical Specifications
Ferrite Bead Case / Package
-
DC Current Rating
5A
DC Resistance Max
0.003ohm
Product Length
8.9mm
Product Height
3.2mm
Operating Temperature Min
-40°C
Qualification
-
Impedance
52ohm
Product Range
WE-CMS Series
Impedance Tolerance
± 25%
Product Width
5.6mm
Ferrite Mounting
SMD
Operating Temperature Max
125°C
SVHC
No SVHC (21-Jan-2025)
Technical Docs (3)
Alternatives for 7427521
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
