228-7396-55-1902
IC & Component Socket, 28 Contacts, SOIC Socket, 2.54 mm, 228 Series, 7.62 mm, Beryllium Copper

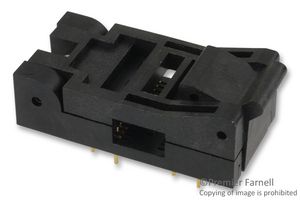

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 228-7396-55-1902Copy |
| Manufacturer Standard Lead Time | 9 weeks |
| Newark Part No. | 85K7837 |
| Product Range | 228 Series |
| Also Known As | GTIN UPC EAN: 00051138765323 JE150900890 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 9 week(s)
| Quantity | Price |
|---|---|
| 20+ | $63.790 |
Price for:Each
Minimum: 20
Multiple: 20
$1,275.80
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 228-7396-55-1902Copy |
| Manufacturer Standard Lead Time | 9 weeks |
| Newark Part No. | 85K7837 |
| Product Range | 228 Series |
| Also Known As | GTIN UPC EAN: 00051138765323 JE150900890 |
| Technical Datasheet | |
| No. of Contacts | 28Contacts |
| Connector Type | SOIC Socket |
| Pitch Spacing | 2.54mm |
| Product Range | 228 Series |
| Row Pitch | 7.62mm |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| SVHC | To Be Advised |
Product Overview
- Suitable for gull wing style devices
- Top or front actuated sprung flip lid
- Lid actuation suitable for manual or automated use
- Compact size
- Side by side stackable
- Tweezer slot aids component placement/removal
- 80Gms force per lead
- UL recognised
- Insulator: glass filled polyethersulfone
Technical Specifications
| No. of Contacts | 28Contacts |
|---|---|
| Pitch Spacing | 2.54mm |
| Row Pitch | 7.62mm |
| Contact Plating | Gold Plated Contacts |
| Connector Type | SOIC Socket |
|---|---|
| Product Range | 228 Series |
| Contact Material | Beryllium Copper |
| SVHC | To Be Advised |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | To Be Advised |
