8350-6005
D Sub Connector, Tin & Dimple, DB50, Standard, Receptacle, 8300 Series, 50 Contacts, DD, IDC / IDT

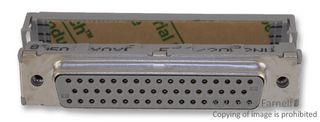

Image is for illustrative purposes only. Please refer to product description.
Manufacturer3M
Manufacturer Part No8350-6005
Newark Part No.46F4834
Product Range8300 Series
Also Known AsGTIN UPC EAN: 04001895115202 DE610006715
Technical Datasheet
182 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $48.360 |
| 10+ | $44.640 |
| 25+ | $44.640 |
| 50+ | $44.640 |
| 100+ | $44.640 |
| 250+ | $44.640 |
| 500+ | $41.450 |
Price for:Each
Minimum: 1
Multiple: 1
$48.36
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
Manufacturer3M
Manufacturer Part No8350-6005
Newark Part No.46F4834
Product Range8300 Series
Also Known AsGTIN UPC EAN: 04001895115202 DE610006715
Technical Datasheet
D Sub Connector TypeStandard
Product Range8300 Series
No. of Contacts50Contacts
D Sub Shell SizeDD
Contact Termination TypeIDC / IDT
Connector MountingCable Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector Body MaterialSteel Body
SVHCTo Be Advised
Product Overview
The 8350-6005 is a 50-way D Sub Socket, 4 to 40 UNC mounting and IDC/IDT termination. This 8350 series plug is glass filled polyester (PBT) insulated, open cover, lower insertion/withdrawal force than other 50 position products. Shell made of steel with tin-plated finish.
- Grey colour
- UL94V-0 Flammability rating
- 1A Current rating
- <gt/>1 x 10⁹Ω at 500VDC Insulation resistance
- -55 to 105°C Temperature rating
Applications
Communications & Networking, Computers & Computer Peripherals, Industrial
Notes
Please note that strain relief needs to be ordered separately
Technical Specifications
D Sub Connector Type
Standard
Product Range
8300 Series
D Sub Shell Size
DD
Connector Mounting
Cable Mount
Contact Plating
Gold Plated Contacts
SVHC
To Be Advised
Gender
Receptacle
No. of Contacts
50Contacts
Contact Termination Type
IDC / IDT
Contact Material
Copper Alloy
Connector Body Material
Steel Body
Technical Docs (2)
Alternatives for 8350-6005
2 Products Found
Associated Products
7 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
