14RB-47PT
Pin Terminal, Sta-Kon RB Series, Crimp, 16 AWG, 14 AWG, 1.91 mm

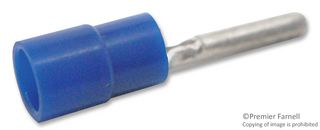

Image is for illustrative purposes only. Please refer to product description.
ManufacturerABB - THOMAS & BETTS
Manufacturer Part No14RB-47PT
Newark Part No.71C9098
Product RangeSta-Kon RB Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 9 week(s)
| Quantity | Price |
|---|---|
| 50+ | $3.020 |
Price for:Each
Minimum: 100
Multiple: 100
$302.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerABB - THOMAS & BETTS
Manufacturer Part No14RB-47PT
Newark Part No.71C9098
Product RangeSta-Kon RB Series
Technical Datasheet
Product RangeSta-Kon RB Series
TerminationCrimp
Wire Size AWG Min16AWG
Wire Size AWG Max14AWG
Conductor Area CSA-
Pin Diameter1.91mm
Insulator ColourBlue
Insulator MaterialVinyl
Terminal MaterialCopper
Overall Length22.1mm
Pin Length9.9mm
SVHCNo SVHC (15-Jan-2018)
Product Overview
The 14RB-47PT is a Pin Terminal made of copper with electro tin plated finish and blue vinyl insulator. The pin terminal provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks. It is designed to prevent shorting, wire strand loss and wire pullout resulting from improper termination of stranded wire and also designed to meet emerging global standards which require wire-to-metric style terminal block installations be terminated with a pin style terminal.
- Compatible with existing Sta-Kon® tooling
- UL94V-0 Flammability rating
Applications
Industrial
Technical Specifications
Product Range
Sta-Kon RB Series
Wire Size AWG Min
16AWG
Conductor Area CSA
-
Insulator Colour
Blue
Terminal Material
Copper
Pin Length
9.9mm
Termination
Crimp
Wire Size AWG Max
14AWG
Pin Diameter
1.91mm
Insulator Material
Vinyl
Overall Length
22.1mm
SVHC
No SVHC (15-Jan-2018)
Technical Docs (1)
Alternatives for 14RB-47PT
2 Products Found
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
