MSC8

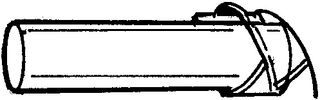

The MSC8 is a Splice Insulator suitable for insulate motor stub splices quickly and dependably. This innovative product has been designed to insulate motor stub splices quickly, easily and dependably. It consists of a boot-type insulator with integral TY-RAP® cable ties. To install, simply position the insulator over the bolted splice and tighten the cable ties. That’s all there is to it. It produces uniform, high-quality installations every time in about 30 seconds. The completed installation is immediately ready for inspection and use. If required, the insulator can be easily removed. Simply snip the cable ties and slide the insulator off the splice. It leaves no sticky residue.

• Re-enterable motor stub insulator
• Easy to install
• No special tools required
• Modified neoprene elastomer body and black nylon straps
• Rated for 600V and 90°C application
• 12 to 8AWG Cable range
• 3/8" Bolt maximum length

Applications

Motor Drive & Control

Contents

Boot style insulator with integral TY-RAP® cable ties.
